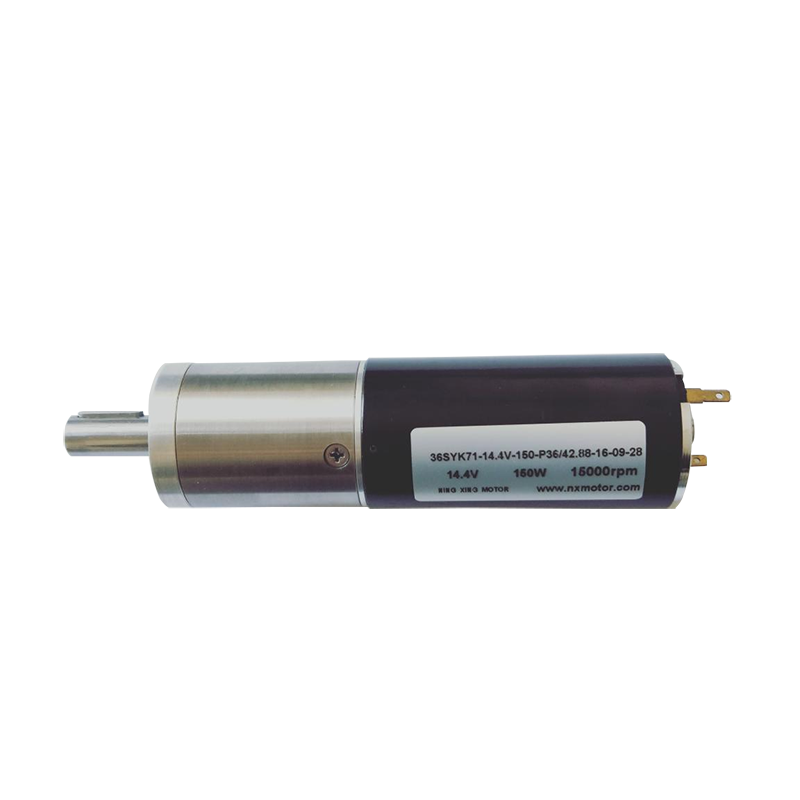

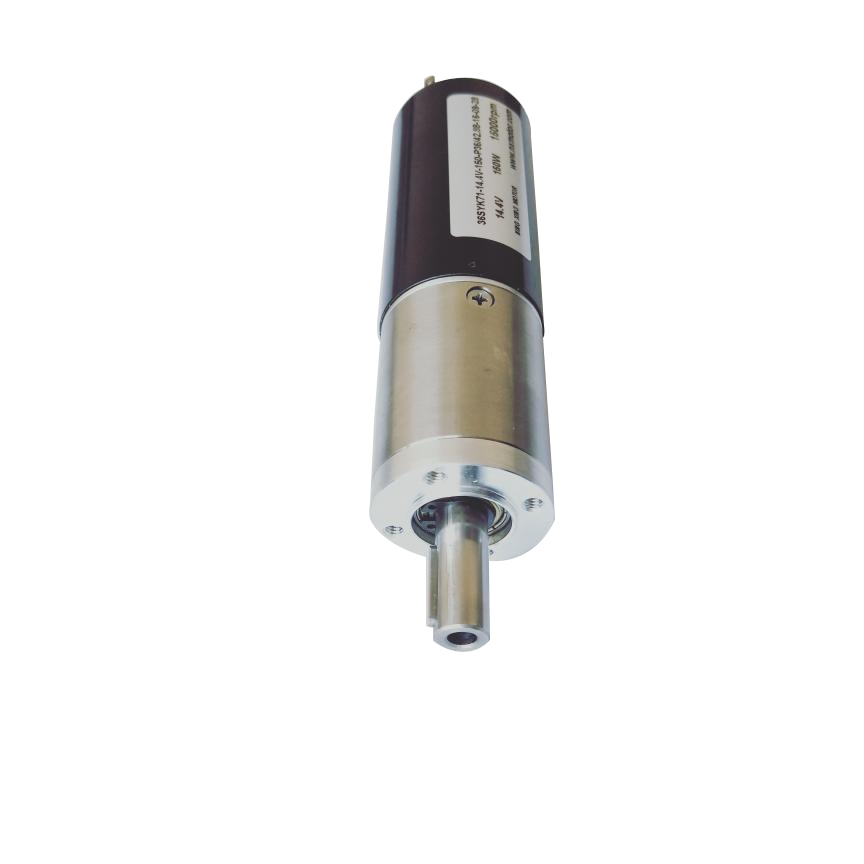

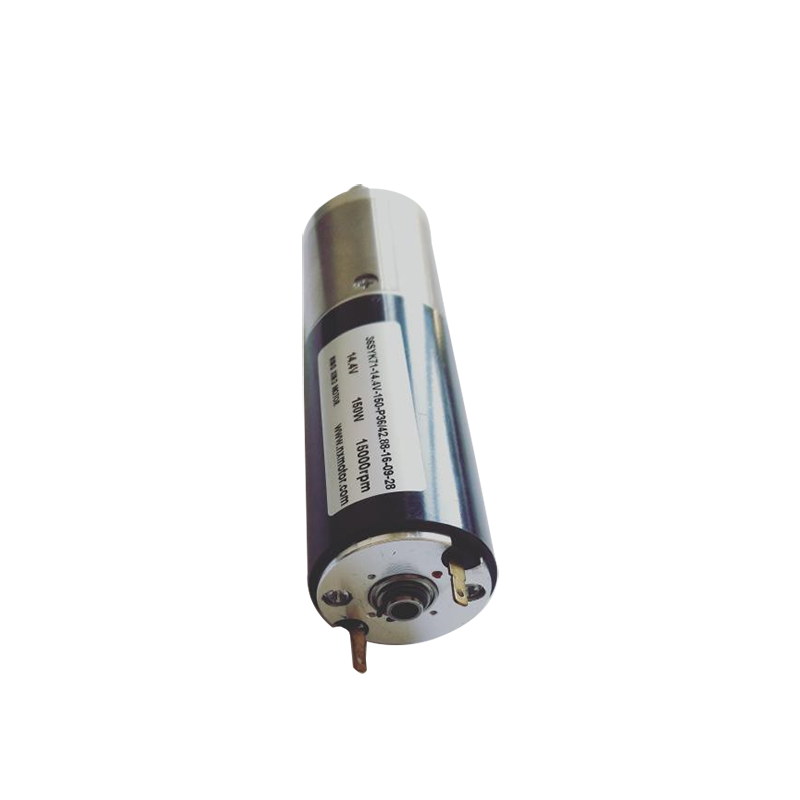

Planetary Gearhead 36mm

As the professional manufacture, we would like to provide you Ruixing Planetary Gearhead 36mm. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you Ruixing Planetary Gearhead 36mm. And we will offer you the best after-sale service and timely delivery. The 36mm planetary gearhead, in particular, is often used in applications that require a high output torque, such as:Industrial automation, Material handling, Printing machinery, Food processing equipment, Packaging machinery. In these applications, the 36mm planetary gearhead can provide precise motion control and increased torque output, improving the efficiency and reliability of the machinery.
P36H Technique Parameter

Technical Parameter


Technical Parameter
Gearbox Diameter mm 36
Bearing of Shaft optional/- Ball Bearing
Radial Clearance mm ≤0.1
Axial Clearance mm ≤0.2
Permission Input Speed rpm ≤10,000
Recommended Temperature Range -20 to +125
Permission Installation Force N ≤120
Axial Load N ≤80
Radial Load N ≤100
Typical Applications
Medical device Digital products UAV Industrial automation
product information
1 Stage 1 2 3 4 5
2 Number of Order 1236002 1236010 1236035 1236073 1236097 1236159 1236274 1236402
3 Ratio 3.75 14.06 52.73 141.56 197.75 474.27 114,844 3082.77
4 Number of Order 1236004 1236014 1236042 1236077 1236109 1236182 1236303 1236432
5 Ratio 4.67 17.50 65.63 169.00 246.09 660.59 1429.17 4293.85
6 Number of Order 1236006 1236019 1236051
1236124 1236198 1236333 1236449
7 Ratio 6.50 21.78 81.67
306.25 920.11 1778.52 5980.72
8 Number of Order
1236024 1236061
1236142
1236362
9 Ratio
30.33 101.63
381.11
2213.27
1 L(mm) 36 43.3 50.6 57.9 65.2
2 Torque(Nm) 4.0 8.0 16.0 16.0 20
3 Stall Torque(Nm) 5.0 12.0 25.0 25.0 30
4 Max Efficiency(%) 90 81 73 65 59
5 Weight(g) 210 245 280 315 350
6 No-Load Backlash(°) 0.8 1.0 1.0 1.0 1.2

MEASUREMENT
