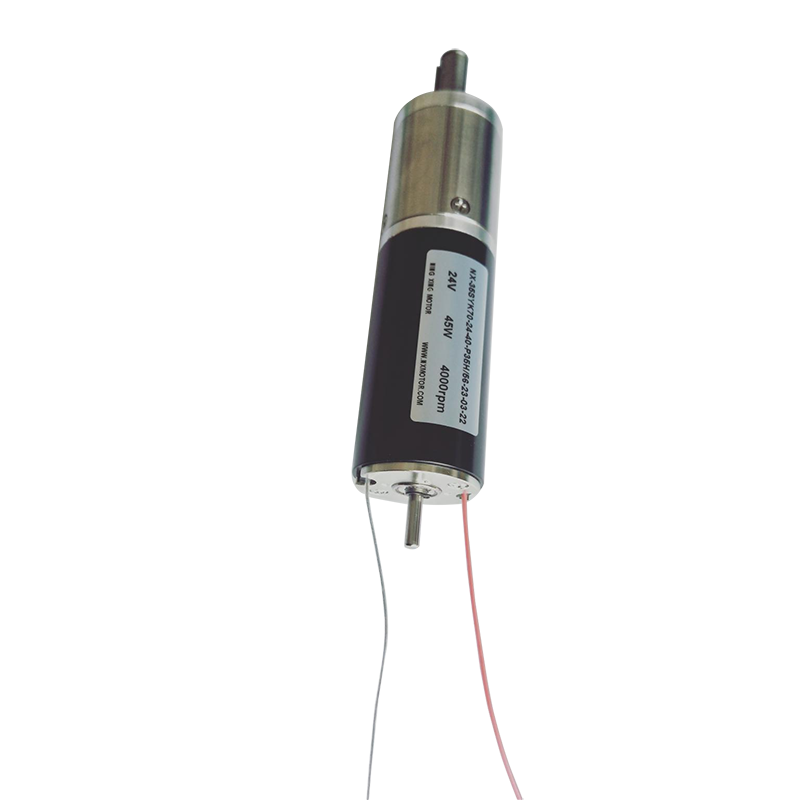

Planetary Gearhead 35mm

You can rest assured to buy Ruixing Planetary Gearhead 35mm from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description
You can rest assured to buy Ruixing Planetary Gearhead 35mm from our factory and we will offer you the best after-sale service and timely delivery. To summarize, a 35mm planetary gearhead is an effective gearbox that provides precise motion control and high torque output for small electric motors and other precision applications.
P35H Technique Parameter

Technical Parameter


Technical Parameter
Gearbox Diameter mm 35
Bearing of Shaft optional/- Ball Bearing
Radial Clearance mm ≤0.1
Axial Clearance mm ≤0.2
Permission Input Speed rpm ≤10,000
Recommended Temperature Range -20 to +125
Permission Installation Force N ≤120
Axial Load N ≤80
Radial Load N ≤100
Typical Applications
Medical device Digital products UAV Industrial automation
product information
1 Stage 1 2 3 4 5
2 Number of Order 1235003 1235008 1235024 1235043 1235060 1235099 1235132 1235198
3 Ratio 4.00 12.25 42.88 84.00 150.06 361.00 525.22 1444.00
4 Number of Order 1235004 1235010 1235031 1235044 1235070 1235102 1235144 1235215
5 Ratio 4.75 14.00 56.00 90.25 196.00 384.00 686.00 1824.00
6 Number of Order 1235006 1235011 1235034 1235053 1235082 1235109 1235152 1235224
7 Ratio 6.00 16.00 64.00 144.00 256.00 456.00 784.00 2166.00
8 Number of Order
1235016 1235040
1235091
1235172 1235235
9 Ratio
21.00 76.00
304.00
1024.00 2736.00
1 L(mm) 40.6 47.4 54.0 60.6 67.2
2 Torque(Nm) 3.0 8.0 16 16 20
3 Stall Torque(Nm) 5.0 12 25 25 30
4 Max Efficiency(%) 90 81 73 65 59
5 Weight(g) 210 245 280 315 350
6 No-Load Backlash(°) 1 1.5 1.5 2 2

MEASUREMENT
