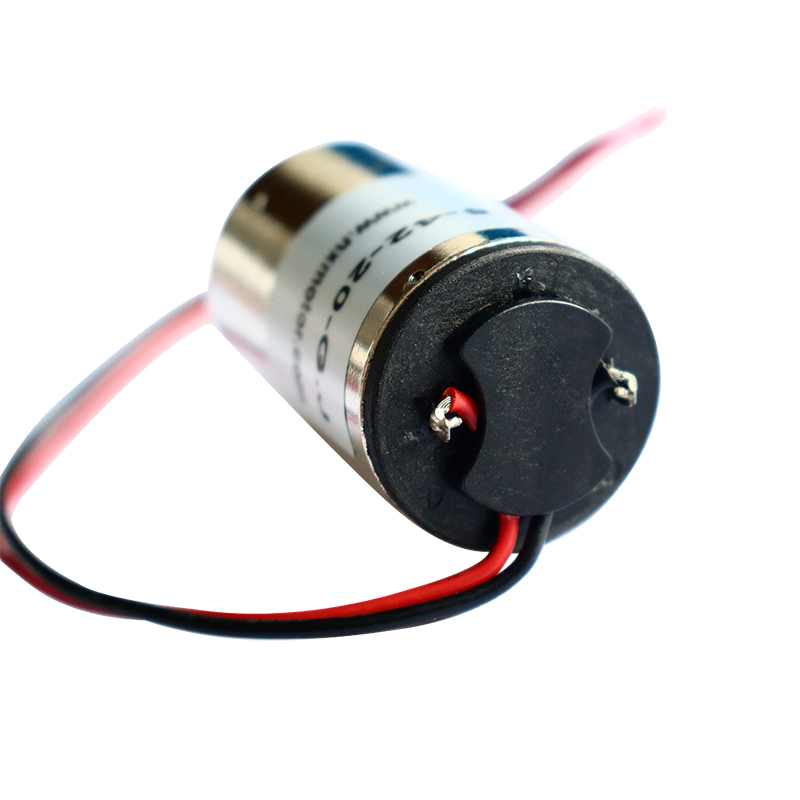

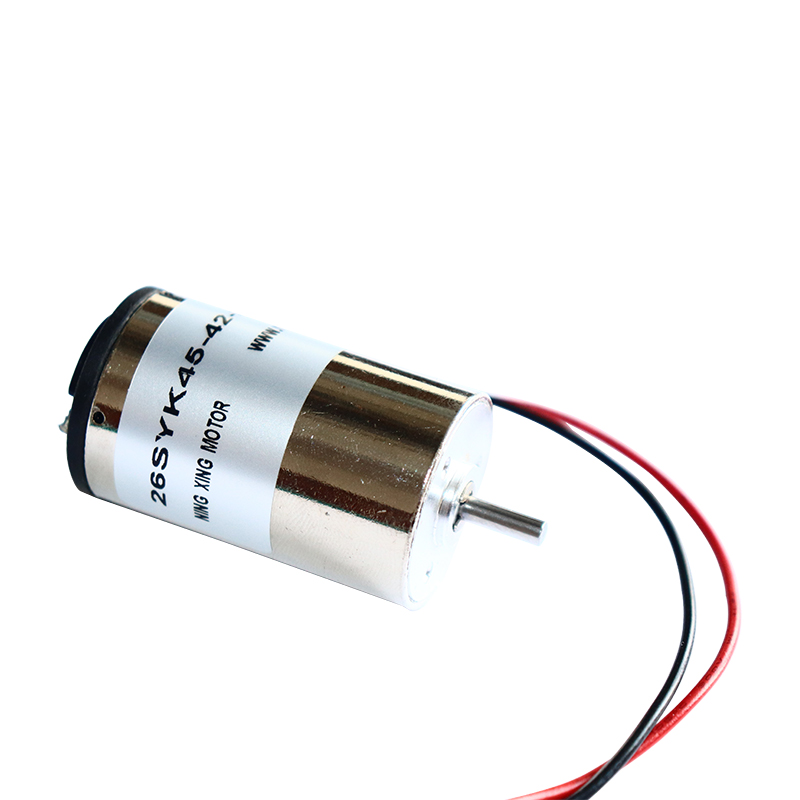

26mm Precious Metal Brush DC Motor
  • 26mm Precious Metal Brush DC Motor26mm Precious Metal Brush DC Motor
  • 26mm Precious Metal Brush DC Motor26mm Precious Metal Brush DC Motor

26mm Precious Metal Brush DC Motor

You can rest assured to buy customized Ruixing 26mm Precious Metal Brush DC Motor from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description


You can rest assured to buy customized Ruixing 26mm Precious Metal Brush DC Motor from us. We attach importance to product development and quality, pay close attention to new trends in product design and carefully study new product technology, and also establish close cooperation with various design institutes, and we look forward to establishing long-term cooperation with you.

26SYK45.G.J Technique Parameter

MOTOR PARAMETER


Nominal Power
W
1.0
Rated Voltage
Volt
42
Resistance ±10%
Ohm
423
No-load Speed ±10%
rpm
2500
No-load Current ≤125%
mA
2
Speed Constant
rpm/V
60
Torque Constant
mNm/A
157.28
Stall Current
mA
99
Stall Torque
mNm
15.62
Max. Efficiency
%
74
Inductance mH
mH
17.7
Mechanical Time Constant
ms
9.33
Rotor Inertia
gcm²
5.55
At Max. Output
Current
mA 40
Torque
mNm
6.29
Speed
rmp
1493
Output
W
1.0

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+80℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 93g
● Precious Metal Brush
● Max. deep of screw installation 3mm
