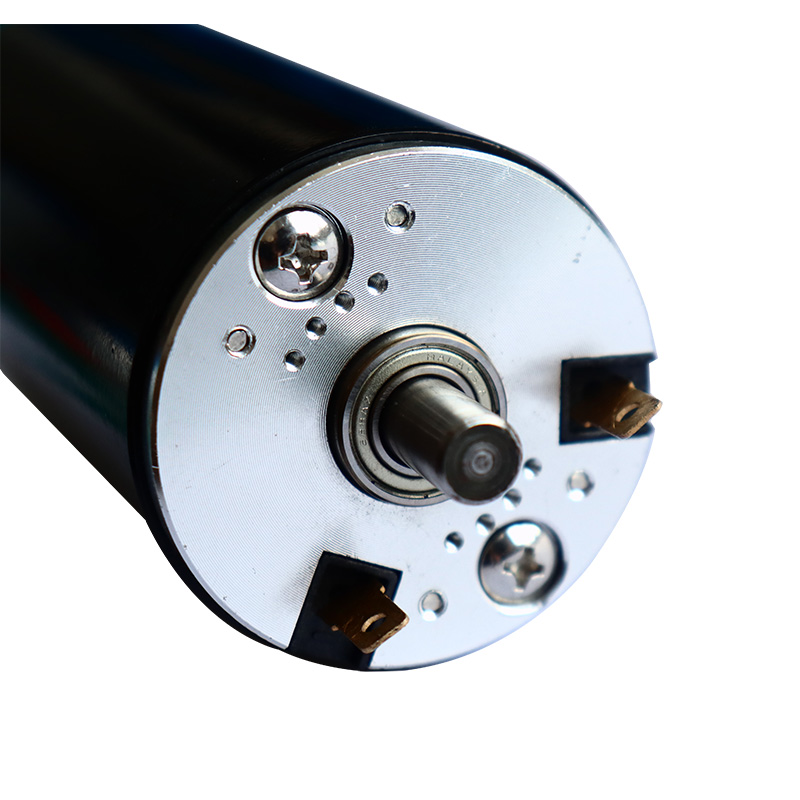

50mm Carbon Brush DC Motor
  • 50mm Carbon Brush DC Motor50mm Carbon Brush DC Motor
  • 50mm Carbon Brush DC Motor50mm Carbon Brush DC Motor

50mm Carbon Brush DC Motor

Buy RuiXing 50mm Carbon Brush DC Motor which is of high quality directly with low price. With stricter quality control and more favorable prices, in 2021, our sales reach $20 million dollars covering more than 40 countries and regions such as United States, Europe, South America, Africa, and the Middle East, etc.

Send Inquiry

Product Description

Buy RuiXing 50mm Carbon Brush DC Motor which is of high quality directly with low price. Overall, the 50mm carbon brush DC motor is a versatile and reliable option for a range of applications that require a compact and efficient electric motor with good torque and speed control.

50SYK75.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
250.0
300.0
Rated Voltage
Volt
24
24
Resistance ±10%
Ohm
0.25
0.073
No-load Speed ±10%
rpm
8500
13000
No-load Current ≤125%
mA
800
650
Speed Constant
rpm/V
354
542
Torque Constant
mNm/A
26.75
17.56
Stall Current
mA
96000
150000
Stall Torque
mNm
2568.15
2634.30
Max. Efficiency
%
83
87
Inductance mH
mH
0.067
0.053
Mechanical Time Constant
ms
14.17
21.91
Rotor Inertia
gcm²
407.70
422.81
At Max. Output
Current
mA
12460
14670
Torque
mNm
333.32
257.63
Speed
rmp
7249
11494
Output
W
250
300

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 15
● Weight 675g
● Carbon Brush
● Max. deep of screw installation 5mm

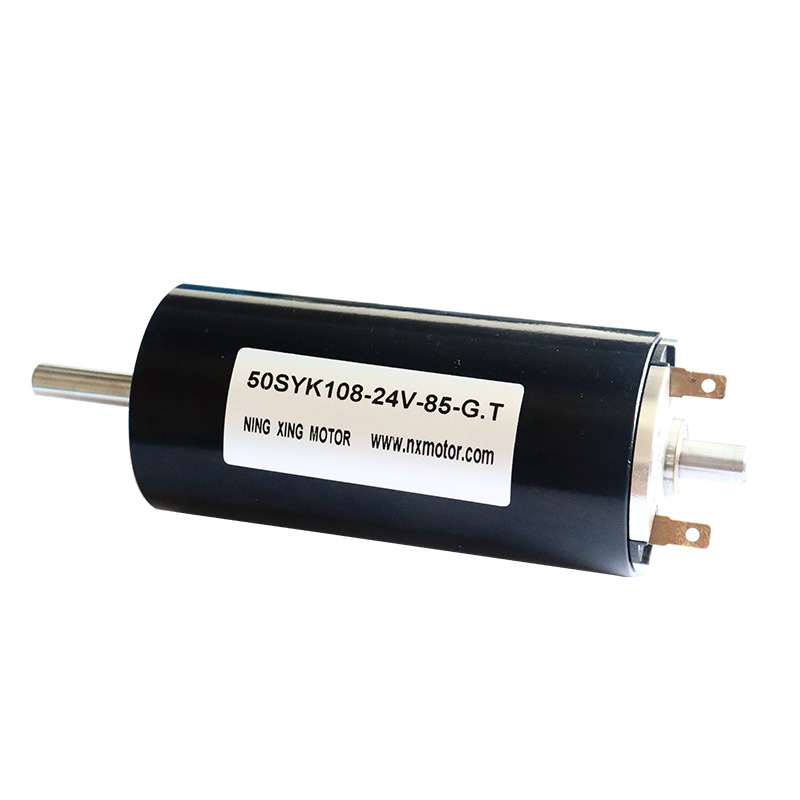

50SYK108.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
250.0
250.0
200.0
250.0
250.0
Rated Voltage
Volt
24
24
36
48
48
Resistance ±10%
Ohm
0.093
0.06
0.28
0.61
0.40
No-load Speed ±10%
rpm
6000
8500
5700
5000
6500
No-load Current ≤125%
mA
450
500
150
150
250
Speed  Constant
rpm/V
250
354
158
104
135
Torque  Constant
mNm/A
38.15
26.94
60.27
91.54
70.41
Stall Current
mA
259459
400000
128571
78689
120000
Stall Torque
mNm
9898.45
10777.07
7749.20
7203.53
8448.80
Max. Efficiency
%
92
93
93
91
91
Inductance mH
mH
0.0384
0.0276
0.14
0.278
0.18
Mechanical Time Constant
ms
3.13
14.13
4.11
3.63
4.00
Rotor Inertia
gcm²
491.48
498.84
532.37
498.16
495.76
At Max. Output
Current
mA
11230
11060
6080
5810
5650
Torque
mNm
428.43
297.99
366.45
531.88
397.80
Speed
rmp
5740
8017
5268
4492
6008
Output
W
250
250
200
250
250

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 15
● Weight 1115g
● Carbon Brush
● Max. deep of screw installation 5mm
