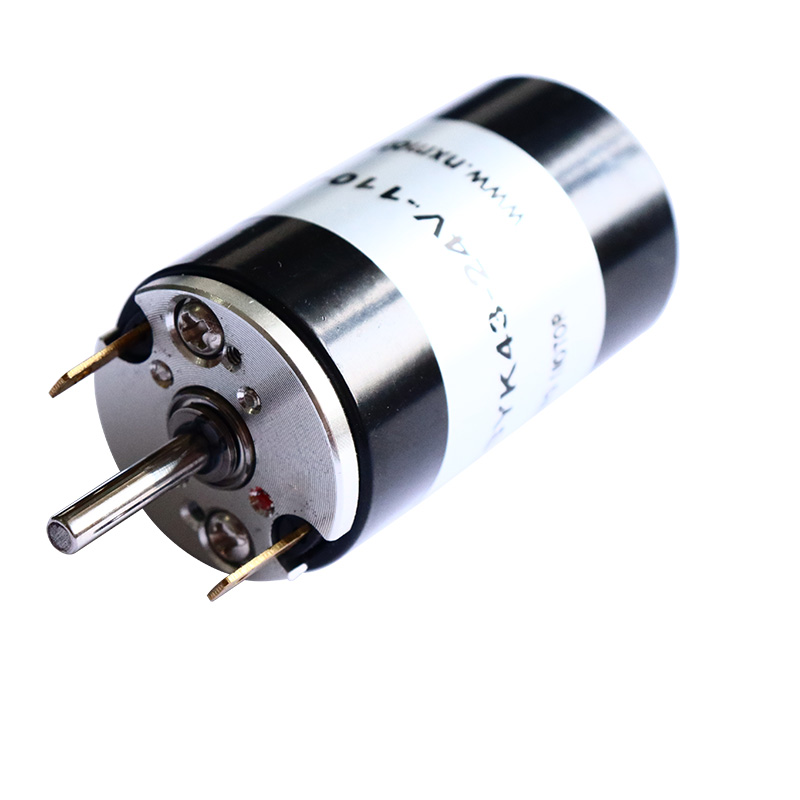

25mm Carbon Brush DC Motor
  • 25mm Carbon Brush DC Motor25mm Carbon Brush DC Motor
  • 25mm Carbon Brush DC Motor25mm Carbon Brush DC Motor
  • 25mm Carbon Brush DC Motor25mm Carbon Brush DC Motor

25mm Carbon Brush DC Motor

You can rest assured to buy customized RuiXing 25mm Carbon Brush DC Motor from us. The company has experienced sales team, by providing good service, won a wide market share and a good reputation. The company adopts modern management concept, insists on quality for survival and honesty for development, and gradually ascends to the competitive platform of globalization. We look forward to your long-term cooperation with our company.

Send Inquiry

Product Description


You can rest assured to buy customized RuiXing 25mm Carbon Brush DC Motor from us. Operating on low voltage and current, the 25mm carbon brush DC motor is typically employed in low-power applications. However, with appropriate design and gearing, it can still deliver significant speed and torque for its size.

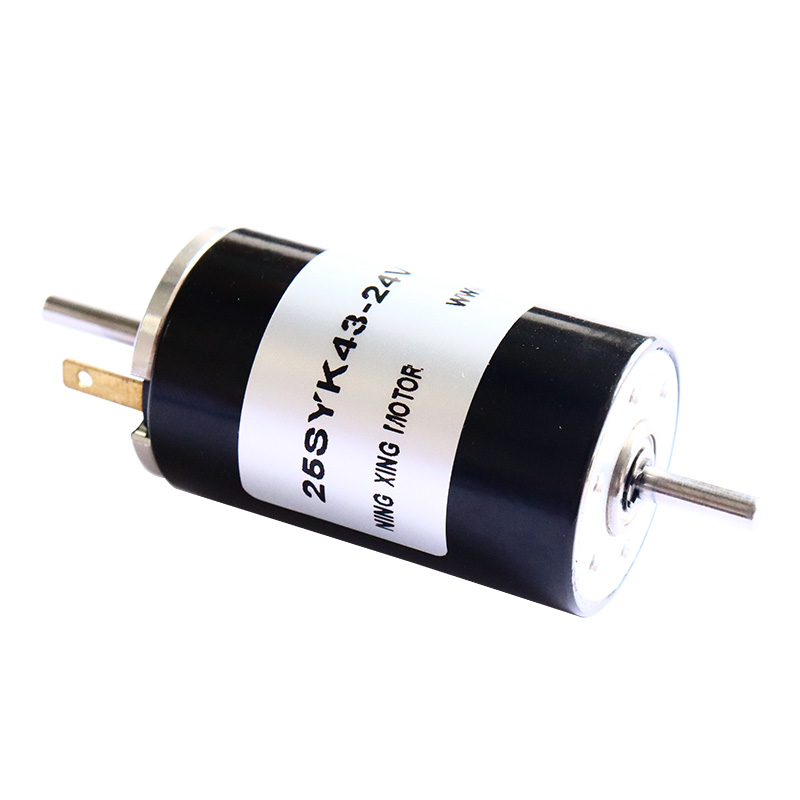

25SYK43.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W      25.0        20.0
30.0
26.0
25.0
30.0
Rated Voltage
Volt
12 24
24
030
48
48
Resistance ±10%
Ohm
0.58 3.47
1.62
3.20
10.60
8.00
No-load Speed ±10%
rpm
9800 6000
11000
9200
8000
10000
No-load Current ≤125%
mA
80 70
90
60
25
50
Speed Constant
rpm/V
817 250
458
307
167
208
Torque Constant
mNm/A
11.65 37.83
20.72
30.96
57.01
45.48
Stall Current
mA
20690 6916
14815
9375
4528
6000
Stall Torque
mNm
241 261.65
306.94
290.21
258.15
272.87
Max. Efficiency
%
88 81
85
85
86
83
Inductance mH
mH
0.055 0.48
0.243
0.45
0.976
0.976
Mechanical Time Constant
ms
9.15 3.28
4.98
4.52
4.37
4.00
Rotor Inertia
gcm²
21.4 13.62
13.23
13.57
13.42
10.40
At Max. Output

Current
mA
2400 1015
1465
1015
605
750
Torque
mNm
27.97 38.40
30.35
31.42
0.3
34.11
Speed
rmp
8663 4966
9714
8040
6931
8488
Output
W
25 20
30.9
26
25
30

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 11
● Weight 105g
● Carbon Brush
● Max. deep of screw installation 3mm


25SYK55.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
15.0
20.0
Rated Voltage
Volt
24
48
Resistance ±10%
Ohm
8.00
25
No-load Speed ±10%
rpm
5000
5500
No-load Current ≤125%
mA
20
20
Speed Constant
rpm/V
208
115
Torque  Constant
mNm/A
45.55
82.51
Stall Current
mA
3000
1920
Stall Torque
mNm
136.66
158.43
Max. Efficiency
%
84
81
Inductance mH
mH
0.9 2.3
Mechanical Time Constant
ms
3.99 3.88
Rotor Inertia
gcm²
10.40
10.64
At Max. Output
Current
mA
950
670
Torque
mNm
43.28 55.28
Speed
rmp
3314
3473
Output
W
15
20

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 11
● Weight 130g
● Carbon Brush
● Max. deep of screw installation 4mm
