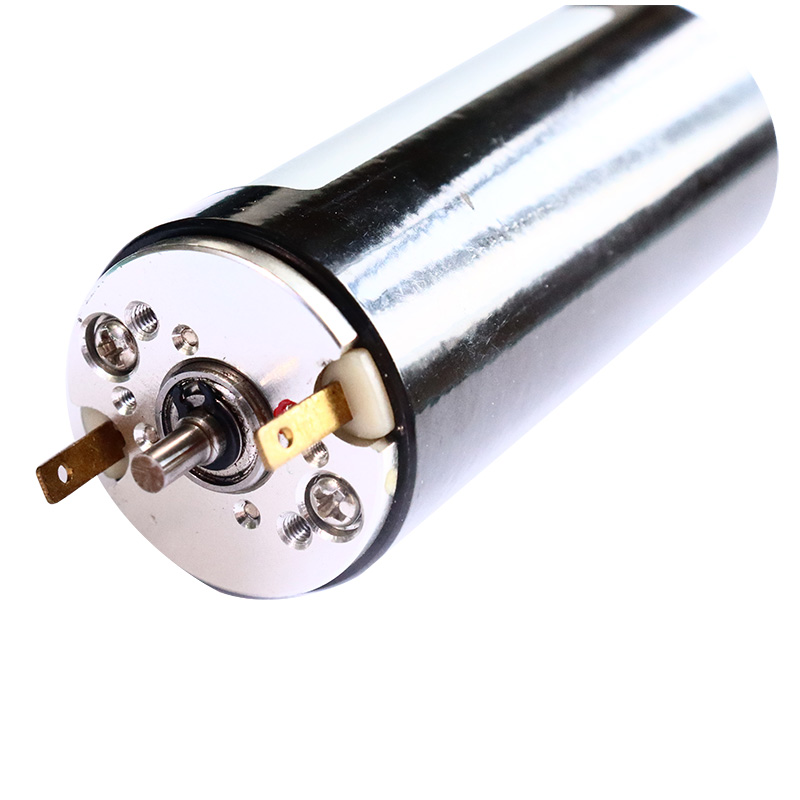

30mm Carbon Brush DC Motor
  • 30mm Carbon Brush DC Motor30mm Carbon Brush DC Motor
  • 30mm Carbon Brush DC Motor30mm Carbon Brush DC Motor

30mm Carbon Brush DC Motor

You can rest assured to buy RuiXing 30mm Carbon Brush DC Motor from our factory. The company adopts a modern management concept, adhere to the quality of survival, integrity and development, and gradually ascend to the globalization of the competitive platform. We look forward to your long-term cooperation with our company.

Send Inquiry

Product Description


You can rest assured to buy RuiXing 30mm Carbon Brush DC Motor from our factory. A 30mm carbon brush DC motor is a type of electric motor that uses a carbon brush to transfer electrical current from the power source to the rotating motor shaft. The "30mm" in the name refers to the diameter of the motor. Carbon brush DC motors are commonly used in a variety of applications, such as power tools, electric vehicles, robotics, and industrial machinery.

30SYK68.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
75.0
65.0
60.0
Rated Voltage
Volt
24
28
48
Resistance ±10%
Ohm
0.60
1.32
2.65
No-load Speed ±10%
rpm
8.800
8500
8500
No-load Current ≤125%
mA
140
120
90
Speed Constant
rpm/V
367
304
177
Torque Constant
mNm/A
25.97 31.29
53.68
Stall Current
mA
40000
21212
18113
Stall Torque
mNm
1038.62
663.2
975.40
Max. Efficiency
%
89
86
86
Inductance mH
mH
0.11
0.18
0.5
Mechanical Time Constant
ms
3.33
4.76
3.93
Rotor Inertia
gcm²
37.40
35.39
42.84
At Max. Output
Current
mA
3450
2780
1400
Torque
mNm
89.58
87.00
75.16
Speed
rmp
8041
7164
7608
Output
W
75
65
60

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 240g
● Carbon Brush
● Max. deep of screw installation 3.5mm
