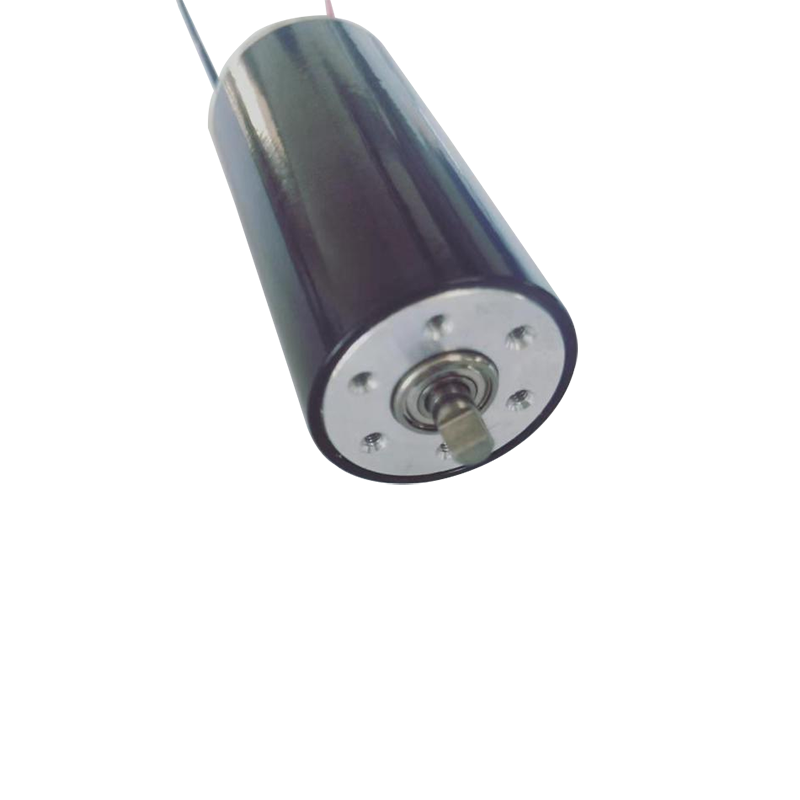

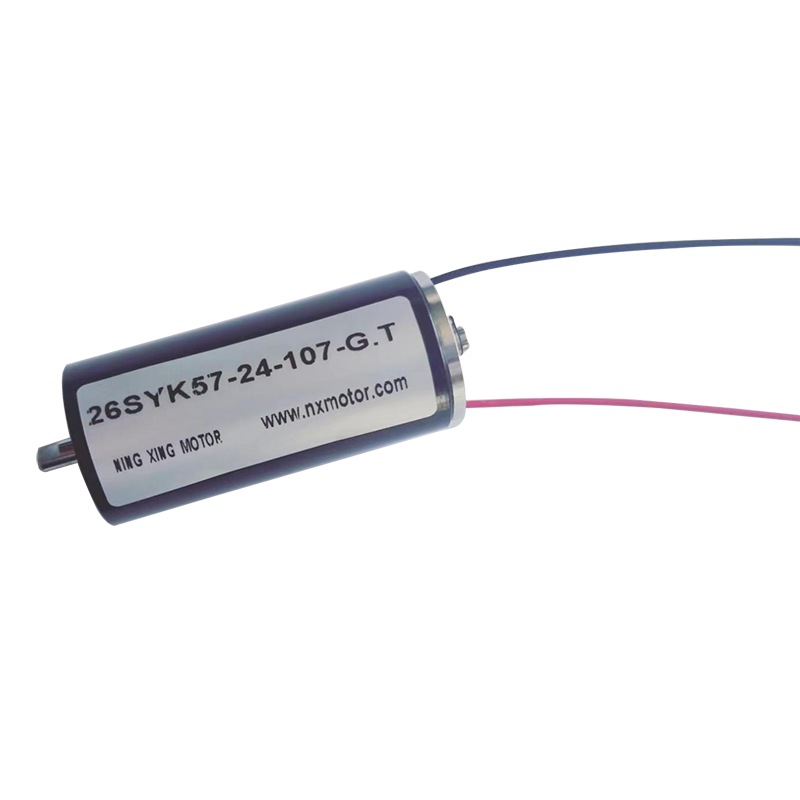

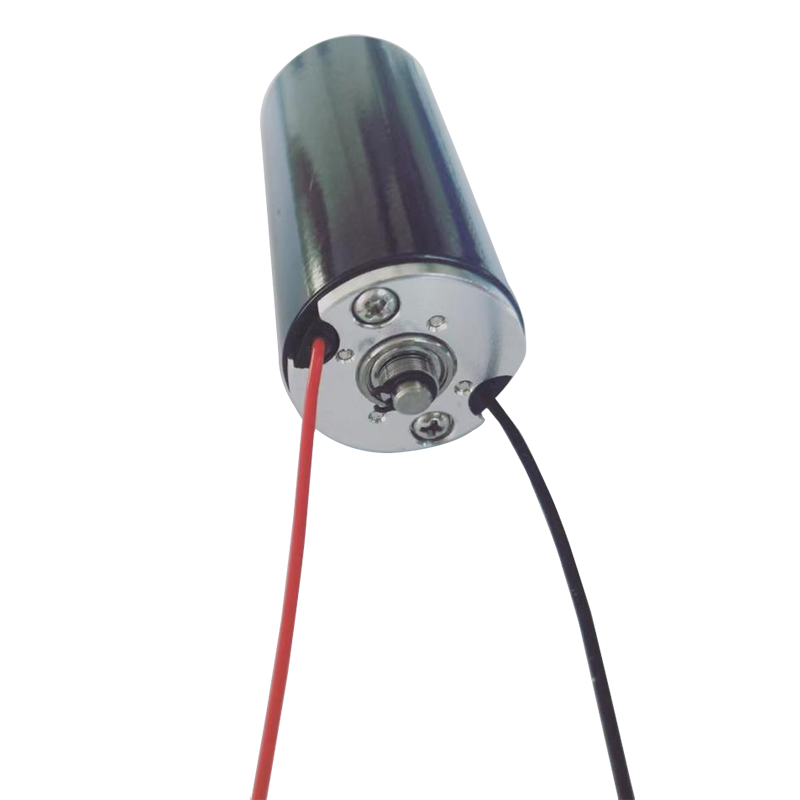

28mm Carbon Brush DC Motor
  • 28mm Carbon Brush DC Motor28mm Carbon Brush DC Motor
  • 28mm Carbon Brush DC Motor28mm Carbon Brush DC Motor
  • 28mm Carbon Brush DC Motor28mm Carbon Brush DC Motor

28mm Carbon Brush DC Motor

As a professional high quality Ruixing 28mm Carbon Brush DC Motor manufacture, you can rest assured to buy 28mm Carbon Brush DC Motor from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


As a professional high quality Ruixing 28mm Carbon Brush DC Motor manufacture, Ruixing regards quality as the life of the enterprise, strictly manages quality and actively participates in market competition, with remarkable performance, receiving support from domestic customers, while actively exploring the international market, exporting products to the Philippines, Pakistan, Australia, New Zealand, Venezuela, India, Japan, the Netherlands, the United States and other countries, the quality of products has been widely praised and has left a good impression on customers.

28SYK30.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
14.0
Rated Voltage
Volt
18
Resistance ±10%
Ohm
5.40
No-load Speed ±10%
rpm
11000
No-load Current ≤125%
mA
90
Speed Constant
rpm/V
611
Torque Constant
mNm/A
15.21
Stall Current
mA
3333
Stall Torque
mNm
50.71
Max. Efficiency
%
70
Inductance mH
mH
0.185
Mechanical Time Constant
ms
12.73
Rotor Inertia
gcm²
5.59
At Max. Output
Current
mA
2000
Torque
mNm
30.42
Speed
rmp
4400
Output
W
14

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 11
● Weight 86g
● Carbon Brush
● Max. deep of screw installation 3mm


28SYK43.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W       15.0       34.0       25.0 18.0
Rated Voltage
Volt
24 24 36 48
Resistance ±10%
Ohm
4.5 3.66 9.5 14.65
No-load Speed ±10%
rpm
8300 9000 9000 6090
No-load Current ≤125%
mA
80 110 80 60
Speed Constant
rpm/V
346 375 250 127
Torque Constant
mNm/A
27.21 25.05 37.41 73.92
Stall Current
mA
5333 6557 3789 3276
Stall Torque
mNm
145.13 164.26 141.76 242.21
Max. Efficiency
%
77 76 73 75
Inductance mH
mH
0.48 0.3 0.93 1.17
Mechanical Time Constant
ms
9.32 8.33 9.83 4.86
Rotor Inertia
gcm²
15.52 14.48 14.75 18.42
At Max. Output

Current
mA
770 2280 1000 460
Torque
mNm
20.95 57.11 37.41 34.01
Speed
rmp
6889 5695 6426 5078
Output
W 15
34 25 18

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 140g
● Carbon Brush
● Max. deep of screw installation 3.5mm

28SYK57.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
30.0 25.0

50.0

50.0 60.0
Rated Voltage
Volt
12 18 24 36 48
Resistance ±10%
Ohm
0.35 1.40 0.9 3.60 3.80
No-load Speed ±10%
rpm
9000 6300 10700 7500 10000
No-load Current ≤125%
mA
150 120 100 80 80
Speed Constant
rpm/V
750 350 446 208 208
Torque Constant
mNm/A
12.68 27.04 21.35 45.49 45.57
Stall Current
mA
34286 12857 26667 10000 12632
Stall Torque
mNm
434.85 347.69 569.32 454.93 575.61
Max. Efficiency
%
87 82 88 83 85
Inductance mH
mH
0.054 0.217 0.137 0.59 0.6
Mechanical Time Constant
ms
4.51 4.28 4.18 4.18 4.2
Rotor Inertia
gcm²
20.75 22.49 21.16 24.17 23.00
At Max. Output
Current
mA
2850
1600
2370
1770
1470
Torque
mNm
36.15
43.27
50.60
80.52
66.99
Speed
rmp
8004
5516
9457
5987
8571
Output
W
30
25
50
50
60

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 180g
● Carbon Brush
● Max. deep of screw installation 4mm


28SYK60.7.2.120.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
60.0
Rated Voltage
Volt
7.2
Resistance ±10%
Ohm
0.09
No-load Speed ±10%
rpm
12000
No-load Current ≤125%
mA
850
Speed Constant
rpm/V
1667
Torque Constant
mNm/A
5.67
Stall Current
mA
80000
Stall Torque
mNm
453.73
Max. Efficiency
%
80
Inductance mH
mH
0.0075
Mechanical Time Constant
ms
5.23
Rotor Inertia
gcm²
18.82
At Max. Output
Current
mA
9570
Torque
mNm
54.28
Speed
rmp
10565
Output
W
60

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 11
● Weight 178g
● Carbon Brush
● Max. deep of screw installation 4mm
