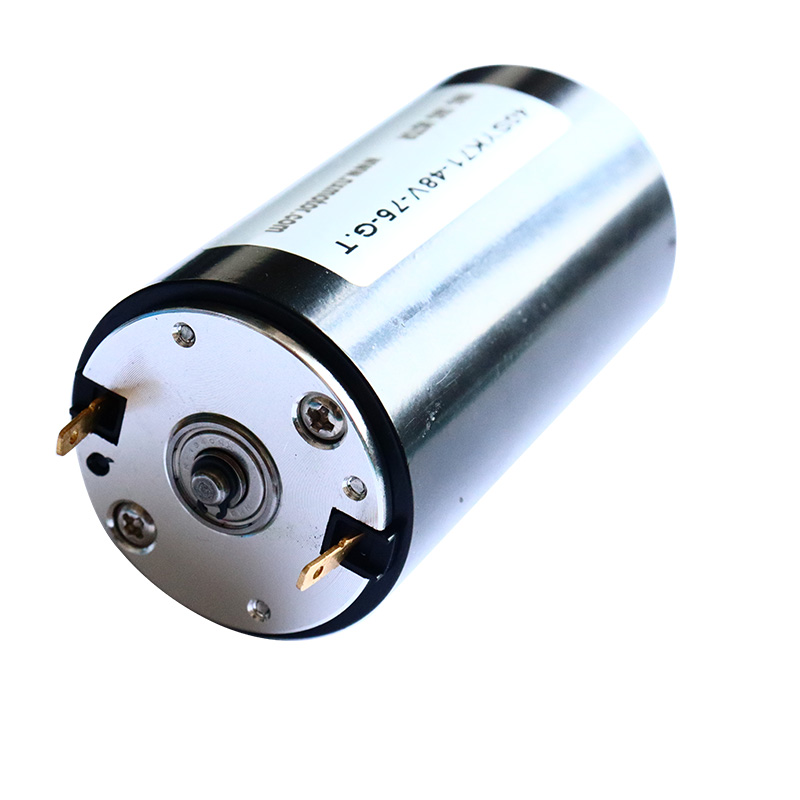

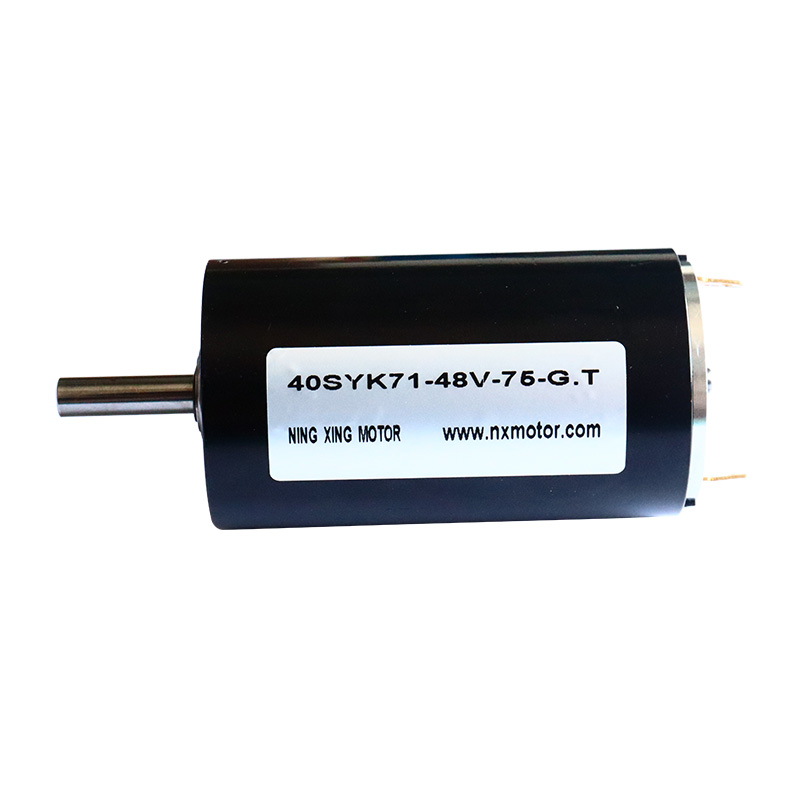

40mm Carbon Brush DC Motor
  • 40mm Carbon Brush DC Motor40mm Carbon Brush DC Motor
  • 40mm Carbon Brush DC Motor40mm Carbon Brush DC Motor

40mm Carbon Brush DC Motor

You can rest assured to buy customized RuiXing 40mm Carbon Brush DC Motor from us. Wide range of products, favored by customers all over the world. Among them, the European and American markets occupy a dominant position, which can reach more than 90%.

Send Inquiry

Product Description


You can rest assured to buy customized RuiXing 40mm Carbon Brush DC Motor from us. The 40mm carbon brush DC motor is commonly used in a range of applications, such as power tools, fans, pumps, and industrial equipment. It can provide high torque at low speeds, making it suitable for applications that require precise control, such as robotics and automation.

40SYK71.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
100.0 150.0 150.0
160.0
Rated Voltage
Volt
24
24
28
28
Resistance ±10%
Ohm
0.53
0.29
0.25
0.40
No-load Speed ±10%
rpm
6000
7500
12000
10000
No-load Current ≤125%
mA
180
230
400
200
Speed Constant
rpm/V
250
313
429
357
Torque Constant
mNm/A
38.06
30.49
22.21
26.68
Stall Current
mA
45283
82759
112000
70000
Stall Torque
mNm
1723.68
2523.17
2487.9
1867.26
Max. Efficiency
%
88
90
88
90
Inductance mH
mH
0.126
0.082
0.053
0.067
Mechanical Time Constant
ms
4.29
4.07
7.19
9.16
Rotor Inertia
gcm²
117.32
130.50
142.06
162.83
At Max. Output
Current
mA
4970
7050
5990
6500
Torque
mNm
189.18
214.94
133.06
173.39
Speed
rmp
5181
6861
10790
8799
Output
W
100
150
150
160

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 440g
● Carbon Brush
● Max. deep of screw installation 5mm


40SYK71.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
150.0 15.0 150.0
200.0
Rated Voltage
Volt
36 48 48
48
Resistance ±10%
Ohm
0.63 21.2 1.35
0.98
No-load Speed ±10%
rpm
7500 2000 8000
9000
No-load Current ≤125%
mA
130 15 150
150
Speed Constant
rpm/V
208 42 167
188
Torque Constant
mNm/A
45.76 227.78 57.08 50.80
Stall Current
mA
57143 2264 35556
48980
Stall Torque
mNm
2614.60 515.73 2029.62
2488.13
Max. Efficiency
%
91 84
87
89
Inductance mH
mH
0.186 9.45 0.32
0.257
Mechanical Time Constant
ms
4.18 4.78 4.81
4.90
Rotor Inertia
gcm²
138.88 117.32 116.33
129.02
At Max. Output
Current
mA
4700 380 3690
4830
Torque
mNm
215.05 86.56 210.64
245.36
Speed
rmp
6677 1664 7170
7788
Output
W
150      15 150
200

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 440g
● Carbon Brush
● Max. deep of screw installation 5mm
