40mm Brushless DC Motor With Hall Sensor
  • 40mm Brushless DC Motor With Hall Sensor40mm Brushless DC Motor With Hall Sensor
  • 40mm Brushless DC Motor With Hall Sensor40mm Brushless DC Motor With Hall Sensor
  • 40mm Brushless DC Motor With Hall Sensor40mm Brushless DC Motor With Hall Sensor
  • 40mm Brushless DC Motor With Hall Sensor40mm Brushless DC Motor With Hall Sensor
  • 40mm Brushless DC Motor With Hall Sensor40mm Brushless DC Motor With Hall Sensor
  • 40mm Brushless DC Motor With Hall Sensor40mm Brushless DC Motor With Hall Sensor

40mm Brushless DC Motor With Hall Sensor

You can rest assured to buy customized RuiXing 40mm Brushless DC Motor With Hall Sensor from us. We will seek to continuously improve our products, processes, and the effectiveness of our quality management system to better serve our customers.

Send Inquiry

Product Description

You can rest assured to buy customized RuiXing 40mm Brushless DC Motor With Hall Sensor from us. Overall, motors with hall sensors are a useful and effective way to improve the performance and control of electric motors in a variety of applications.

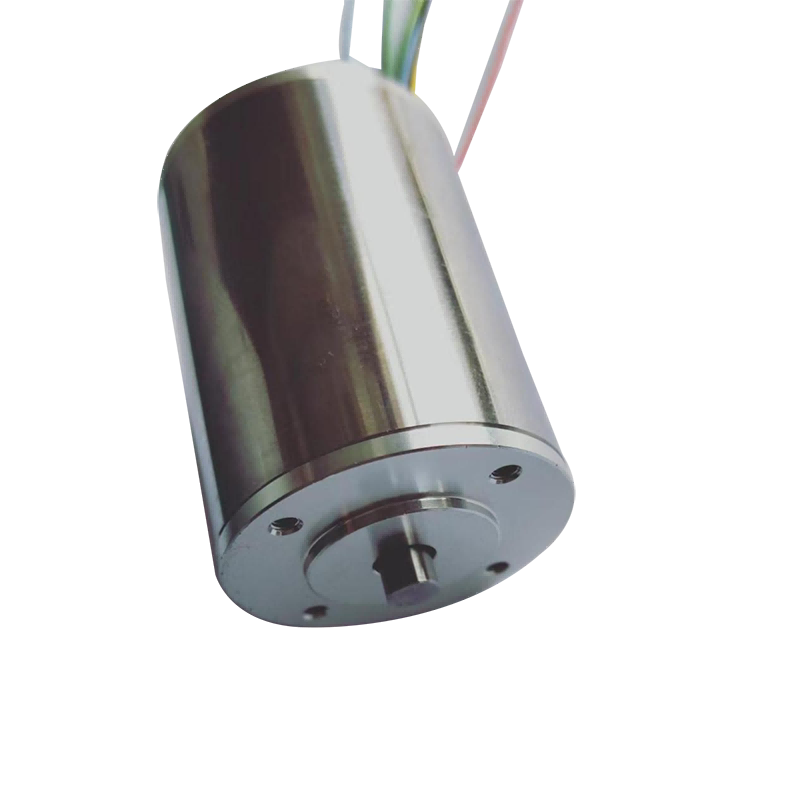

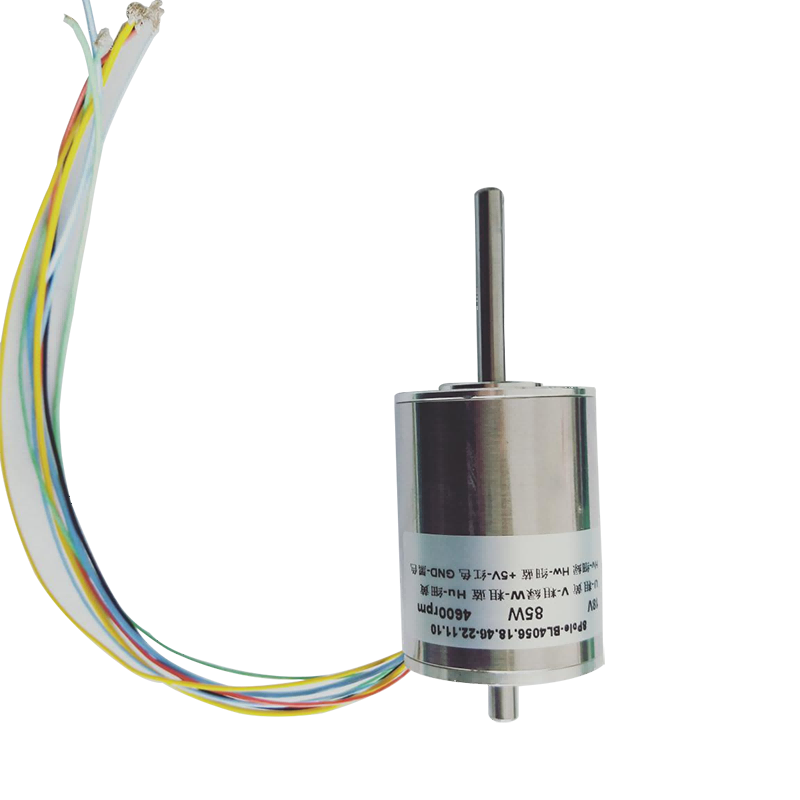

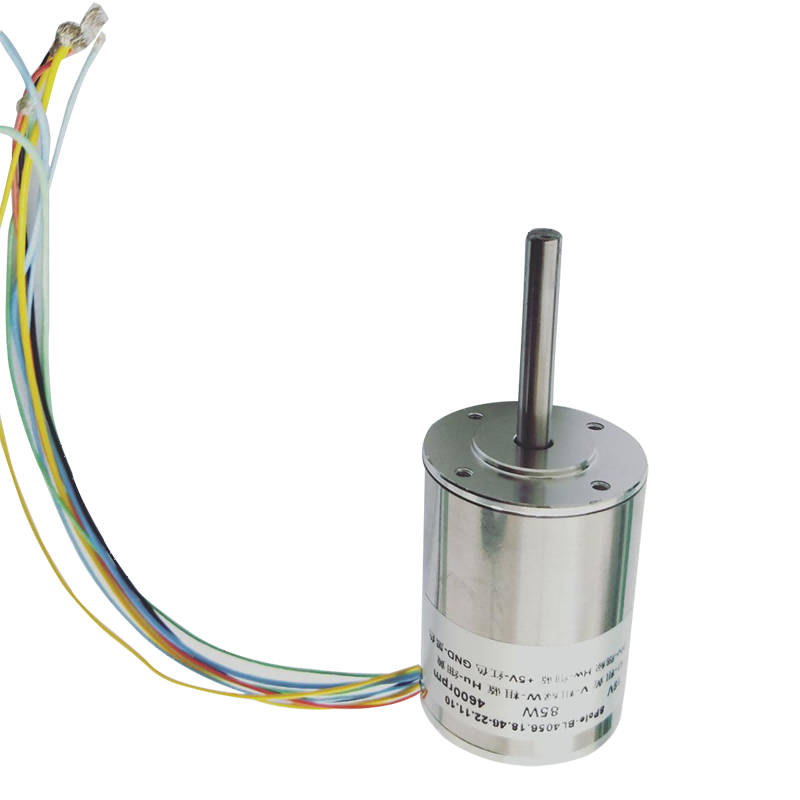

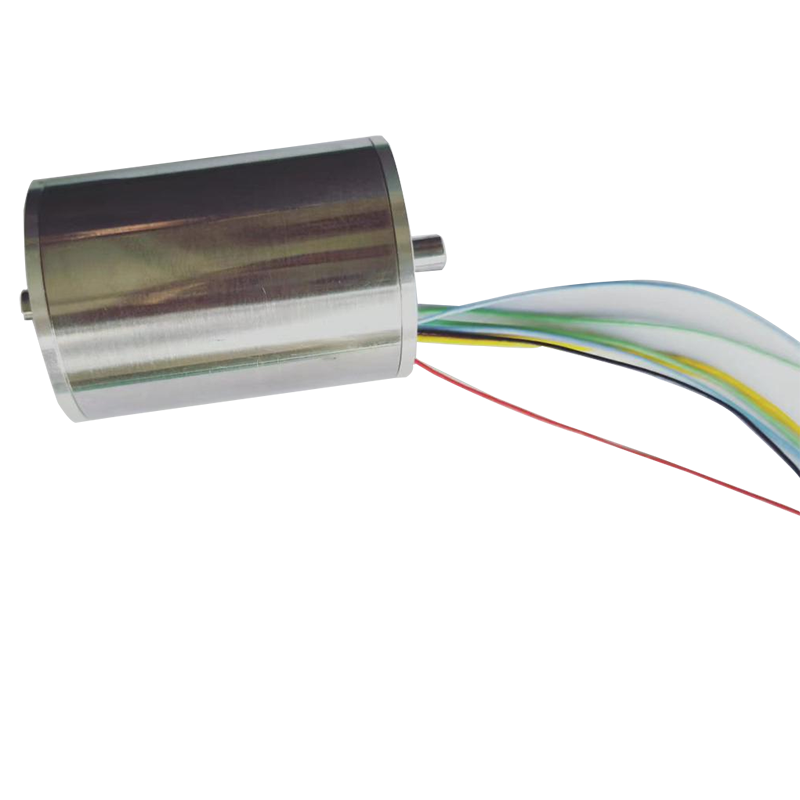

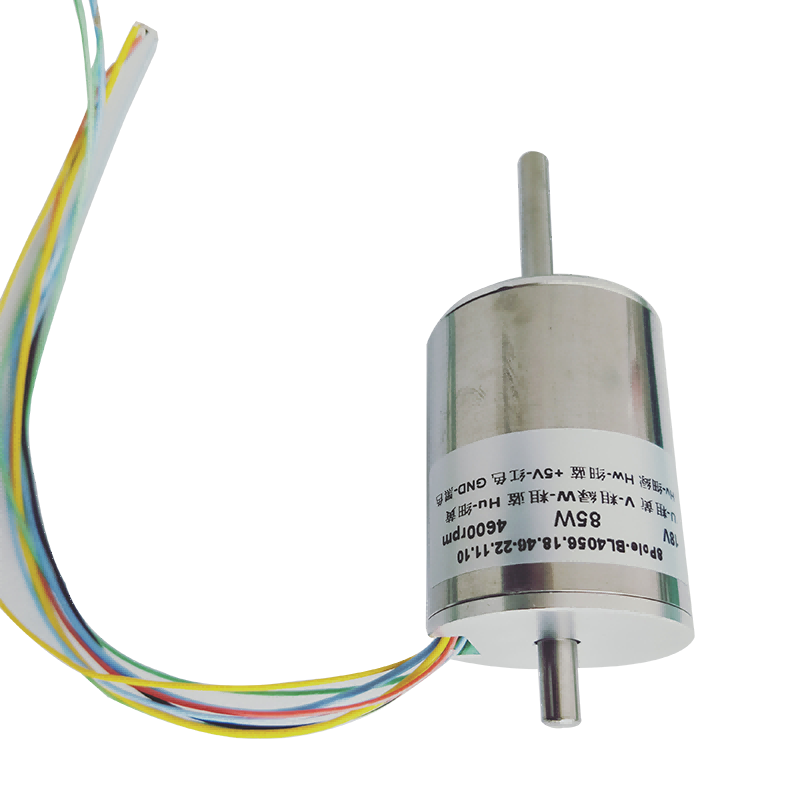

EC-i4056.8Pole Technique Parameter

MOTOR PARAMETER


Nominal Power
W 85.0 100.0
Rated Voltage
Volt
18 48
Resistance
Ohm
0.35 2
No-load Speed
rpm
4600 5000
No-load Current
mA
330 150
Speed Constant
rpm/V
256 104
Torque Constant
mNm/A
37.15 91.15
Speed/torque constant
rpm/mNm 2.41 2.29
Stall Current
mA
51429 24000
Stall Torque
mNm
1910 2188
Max. Efficiency
%
85 85
Inductance
mH
0.111 0.76
Mechanical Time Constant
ms
1.72 1.69
Rotor Inertia
gcm²
67.97 70.47
At Max. Output

Current
mA
5500 2440
Torque
mNm
204 222
Speed
rmp
3985 4357
Output
W 85 101

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max.winding temperature 155℃
● Number of pole pairs 4
● Number of phases 3
● Weight 300g
● Max.speed 8000rpm
●End play  <0.15
●Clearance diametral  ≤0.025

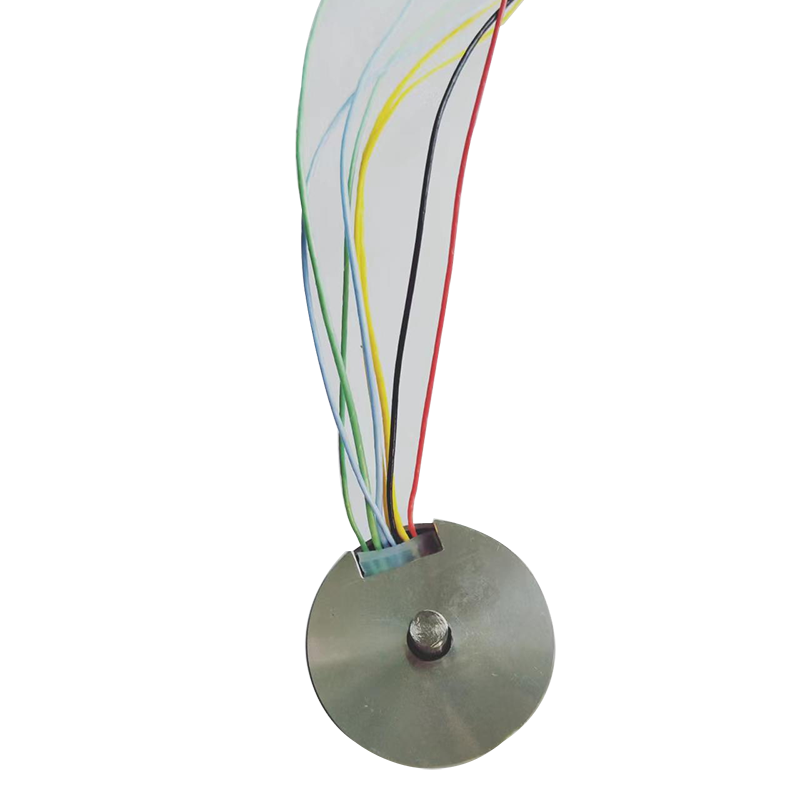

● Lead definition :

Thick-yellow   Motor winding  Pin1;

Thick-green    Motor winding  Pin2;

Thick-blue      Motor winding  Pin3;

Red               +5V                Pin4;

Black             GND                Pin5;

Thin-yellow    Hall  sensor      Pin6;

Thin-green     Hall sensor      Pin7;

Thin-blue       Hall sensor      Pin8.




BLDC4058 Technique Parameter

MOTOR PARAMETER


Nominal Power
W
70
Rated Voltage
Volt
24
Resistance
Ohm
1.55
No-load Speed
rpm
8500
No-load Current
mA
320
Speed Constant
rpm/V
354
Torque Constant
mNm/A
26.42
Speed/torque constant
rpm/mNm
20.78
Stall Current
mA
15484
Stall Torque
mNm
409
Max. Efficiency
%
73
Inductance
mH
0.44
Mechanical Time Constant
ms
15.88
Rotor Inertia
gcm²
72.78
At Max. Output
Current
mA
4200
Torque
mNm
111
Speed
rmp
6009
Output
W
70

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. winding temperature 155℃
● Number of pole pairs 1
● Number of phases 3
● Weight 410g
● Max.speed 12000rpm
●End play <0.15
●Clearance diametral ≤0.025
● Lead definition :

Thick-yellow   Motor winding  Pin1;

Thick-green   Motor winding  Pin2;

Thick-blue     Motor winding  Pin3;

Red              +5V                Pin4;

Black            GND               Pin5;

Thin-yellow   Hall  sensor     Pin6;

Thin-green   Hall sensor      Pin7;

Thin-blue    Hall sensor       Pin8.



BLDC4080 Technique Parameter

MOTOR PARAMETER


Nominal Power
W 170.0 150.0
Rated Voltage
Volt
24 24
Resistance
Ohm
0.14 0.25
No-load Speed
rpm
10000 8500
No-load Current
mA
550 300
Speed Constant
rpm/V
417 354
Torque Constant
mNm/A
22.86 26.89
Speed/torque constant
rpm/mNm 2.55 3.29
Stall Current
mA
17419 96000
Stall Torque
mNm
3918 2582
Max. Efficiency
%
89 89
Inductance
mH
0.075 0.075
Mechanical Time Constant
ms
2.39 3.09
Rotor Inertia
gcm²
89.24 89.24
At Max. Output
Current
mA
7450 7150
Torque
mNm
170 192
Speed
rmp 9565 7474
Output
W 170 150

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max.winding temperature 155℃
● Number of pole pairs 1
● Number of phases 3
● Weight 600g
● Max.speed 18000rpm
●End play <0.15
●Clearance diametral ≤0.025
● Lead definition :

Thick-yellow   Motor winding  Pin1;

Thick-green   Motor winding   Pin2;

Thick-blue      Motor winding  Pin3;

Red             +5V                  Pin4;

Black           GND                 Pin5;

Thin-yellow   Hall  sensor      Pin6;

Thin-green    Hall sensor       Pin7;

Thin-blue      Hall sensor       Pin8.
