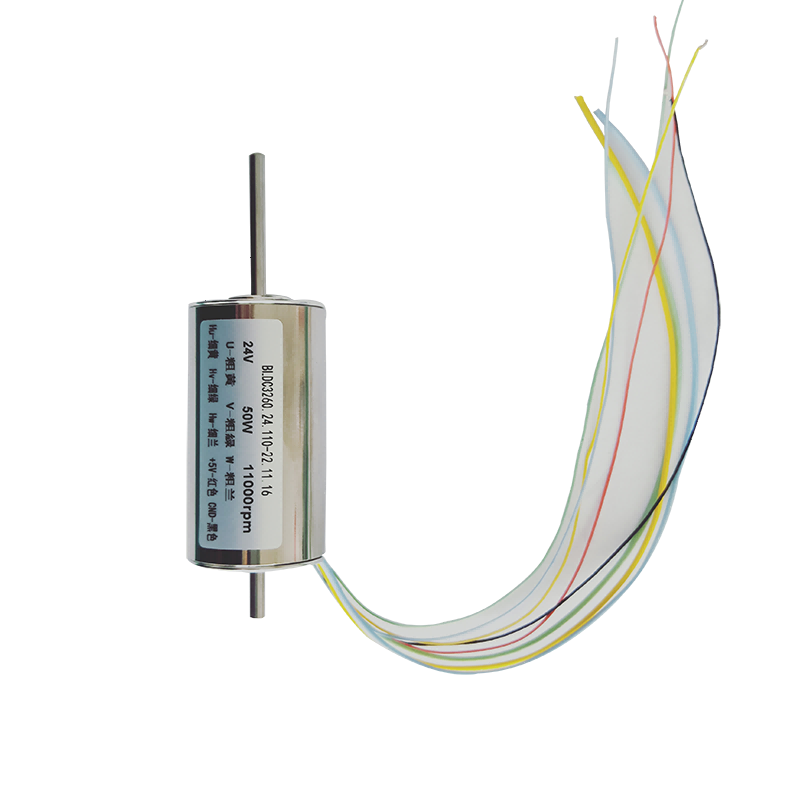

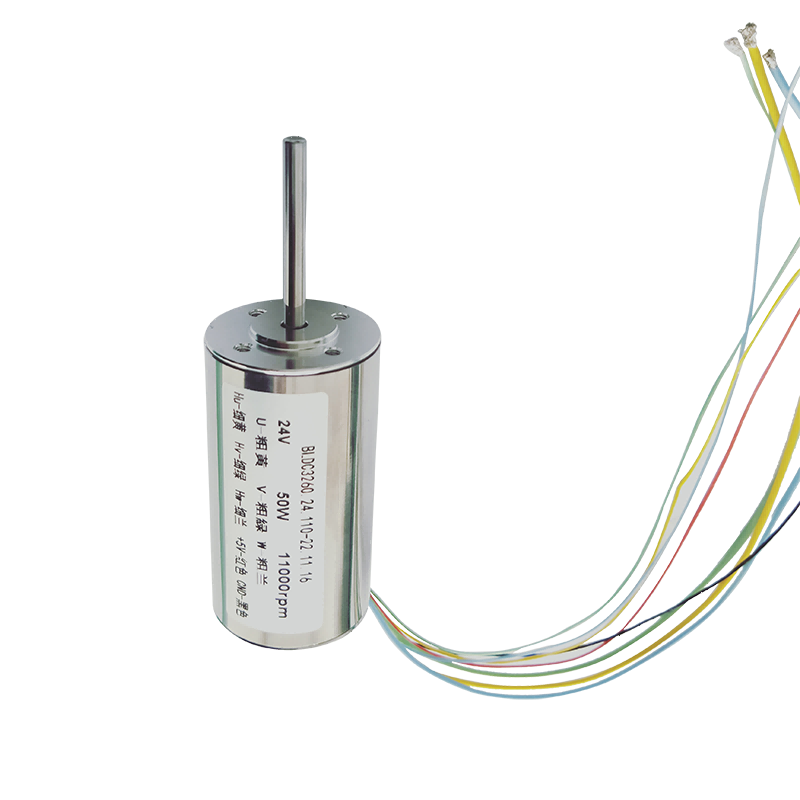

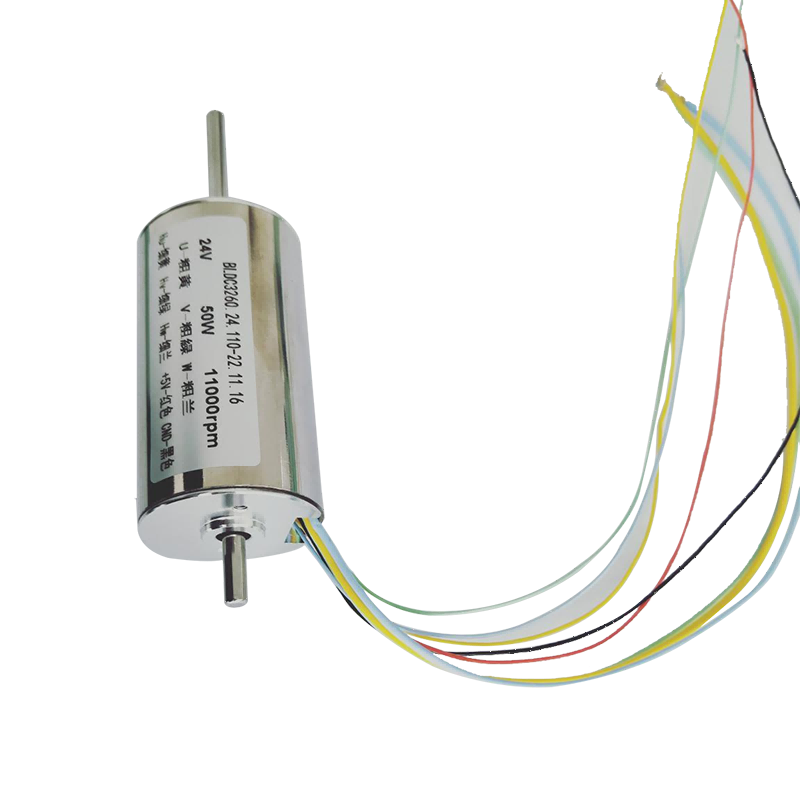

32mm Brushless DC Motor With Hall Sensor
  • 32mm Brushless DC Motor With Hall Sensor32mm Brushless DC Motor With Hall Sensor
  • 32mm Brushless DC Motor With Hall Sensor32mm Brushless DC Motor With Hall Sensor
  • 32mm Brushless DC Motor With Hall Sensor32mm Brushless DC Motor With Hall Sensor

32mm Brushless DC Motor With Hall Sensor

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality RuiXing 32mm Brushless DC Motor With Hall Sensor. We strive to meet customer needs, delivery requirements and we maintain top quality standards and a highly skilled work force. We are dedicated to providing our customers with the highest quality products manufactured to strict quality standards that meet or exceed our customers' requirements.

Send Inquiry

Product Description

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality RuiXing 32mm Brushless DC Motor With Hall Sensor. There are different types of hall effect sensors that can be used in motors, including analog and digital sensors. Analog sensors provide a continuous voltage output proportional to the strength of the magnetic field, while digital sensors provide a discrete output signal that indicates the presence or absence of a magnetic field.

BLDC3260Technique Parameter

MOTOR PARAMETER


Nominal Power
W
50.0
Rated Voltage
Volt
24
Resistance
Ohm
0.80
No-load Speed
rpm
11000
No-load Current
mA
300
Speed Constant
rpm/V
458
Torque Constant
mNm/A
20.64
Speed/torque constant
rpm/mNm
17.77
Stall Current
mA
30000
Stall Torque
mNm
619
Max. Efficiency
%
81
Inductance
mH
0.14
Mechanical Time Constant
ms
6.44
Rotor Inertia
gcm²
34.51
At Max. Output
Current
mA 2420
Torque
mNm
50
Speed
rmp
9607
Output
W
50

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max.winding temperature 155℃
● Number of pole pairs 1
● Number of phases 3
● Weight 270g
● Max.speed 15000rpm
● End play <0.15
● Clearance diametral ≤0.025
● Lead definition

Thick-yellow    Motor winding   Pin1;

Thick-green    Motor winding    Pin2;

Thick-blue      Motor winding    Pin3;

Red               +5V                  Pin4;

Black             GND                 Pin5;

Thin-yellow     Hall sensor       Pin6;

Thin-green      Hall sensor       Pin7;

Thin-blue        Hall sensor       Pin8.
