36mm Carbon Brush DC Motor
  • 36mm Carbon Brush DC Motor36mm Carbon Brush DC Motor
  • 36mm Carbon Brush DC Motor36mm Carbon Brush DC Motor
  • 36mm Carbon Brush DC Motor36mm Carbon Brush DC Motor

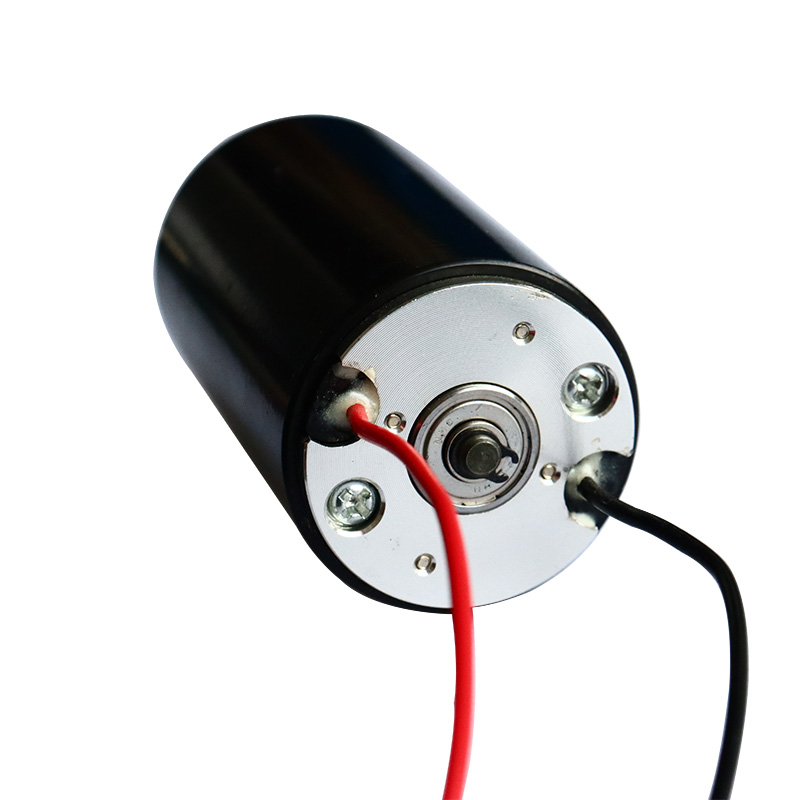

36mm Carbon Brush DC Motor

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality RuiXing 36mm Carbon Brush DC Motor. Our group has experience in producing for more than 20 years, and has started to export for 15 years. Now 50% of our products are exported to all over the world, including South America, the USA, Middle-East, Turkey, East Europe, Bangladesh, Africa, etc.

Send Inquiry

Product Description


You are welcomed to come to our factory to buy the latest selling, low price, and high-quality RuiXing 36mm Carbon Brush DC Motor. A 36mm carbon brush DC motor is a type of electric motor that is similar to the 30mm carbon brush DC motor, but with a slightly larger diameter of 36mm. Like other carbon brush DC motors, it uses carbon brushes to transfer electrical current to the rotating motor shaft.

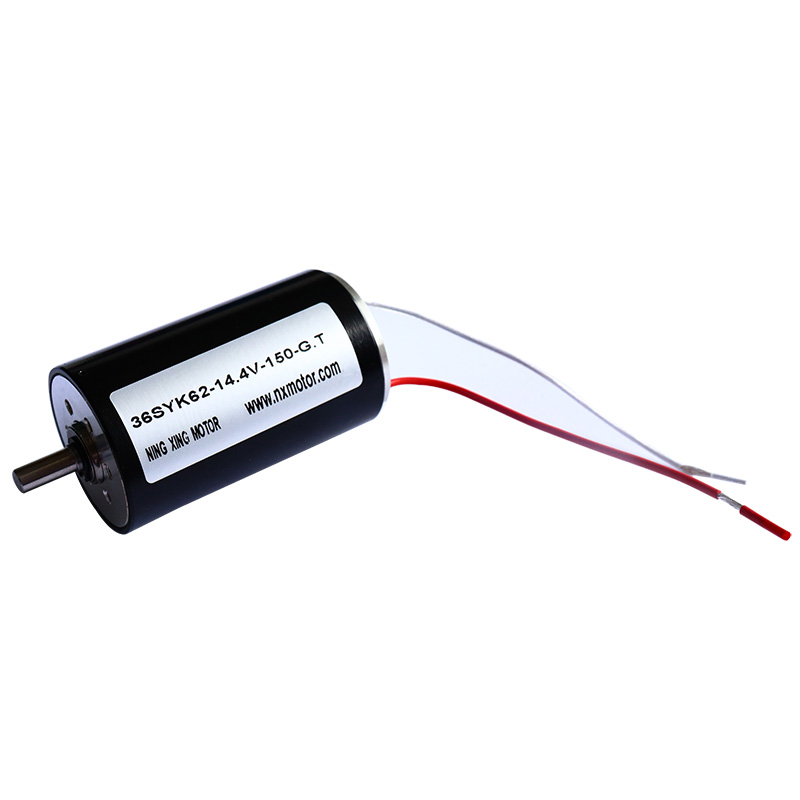

36SYK62.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
150.0 60.0 50.0 90.0
Rated Voltage
Volt
14.4 24.0 24.0 24.0
Resistance ±10%
Ohm
0.080 1.03 0.83 0.62
No-load Speed ±10%
rpm
15000
6500
7500
8500
No-load Current ≤125%
mA
750
130
150
180
Speed Constant
rpm/V
1042
271
313
354
Torque Constant
mNm/A
9.13
35.08
30.41
26.85
Stall Current
mA
180000
23301 28916 38710
Stall Torque
mNm
1644.08 817.40 879.46 1039.39
Max. Efficiency
%
88 86 86 87
Inductance mH
mH
0.012 0.23 0.13 0.125
Mechanical Time Constant
ms
5.82 5.34 5.15 6.96
Rotor Inertia
gcm²
60.77 63.96 57.52 81.04
At Max. Output
Current
mA
11520 2970 2350 4500
Torque
mNm
105.22 104.19 71.47 120.83
Speed
rmp
13619 5501 6684 7136
Output
W
150 60 50
90

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 350g
● Carbon Brush
● Max. deep of screw installation 5mm

36SYK71.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W           150.0       16.0
90.0
90.0
90.0
Rated Voltage
Volt
14.4 18.0
24.0
24.0
42.0
Resistance ±10%
Ohm
0.1 2.35
0.71
0.60
1.60
No-load Speed ±10%
rpm
11000 3000
7500
9.000
7500
No-load Current ≤125%
mA
700 100
165
250
150
Speed Constant
rpm/V
764 167
313
375
179
Torque Constant
mNm/A
12.45 56.58 30.42
25.32
53.2
Stall Current
mA
144000 7660
33803
40000
26250
Stall Torque
mNm
1792.29 433.35
1028.42
1012.74
1396.43
Max. Efficiency
%
87 78
87
85
85
Inductance mH
mH
0.017 0.39
0.1
0.11
0.28
Mechanical Time Constant
ms
4.61 5.57
5.00
5.91
3.89
Rotor Inertia
gcm²
71.58 76.56
65.24
63.39
69.06
At Max. Output

Current
mA
11900 1100
4320
46.50
2450
Torque
mNm
148.11 62.23
131.43
117.73
130.33
Speed
rmp
9788 2492
6542
7715
6800
Output
W 150
16
90
90 90

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 350g
● Carbon Brush
● Max. deep of screw installation 5mm
