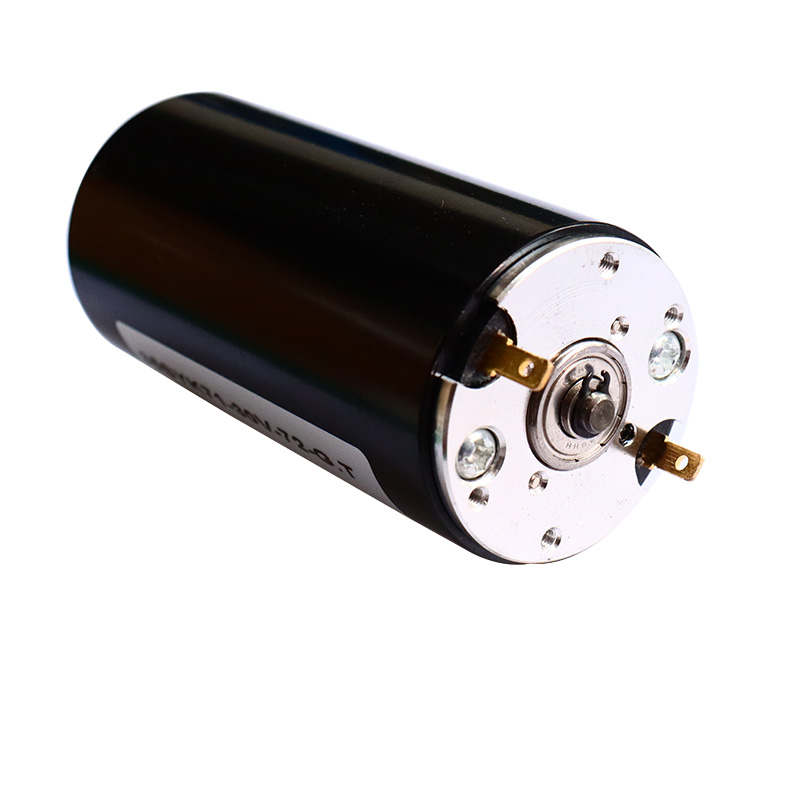

35mm Carbon Brush DC Motor
  • 35mm Carbon Brush DC Motor35mm Carbon Brush DC Motor
  • 35mm Carbon Brush DC Motor35mm Carbon Brush DC Motor
  • 35mm Carbon Brush DC Motor35mm Carbon Brush DC Motor
  • 35mm Carbon Brush DC Motor35mm Carbon Brush DC Motor
  • 35mm Carbon Brush DC Motor35mm Carbon Brush DC Motor

35mm Carbon Brush DC Motor

As the professional manufacture, we would like to provide you high quality RuiXing 35mm Carbon Brush DC Motor. RuiXing has domestic market and overseas market customers. The sales manager speaks fluent English in order to communicate well. Our main sales markets:North America, Southeast Asia, China, Japan and South Korea and Southern Europe, etc.

Send Inquiry

Product Description


As the professional manufacture, we would like to provide you high quality RuiXing 35mm Carbon Brush DC Motor. One of the advantages of carbon brush DC motors is their low cost compared to other types of motors, such as brushless DC motors. However, they require periodic maintenance to replace the carbon brushes, which can wear out over time and cause the motor to lose efficiency or stop working altogether.

35SYK53.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
40.0
Rated Voltage
Volt
48
Resistance ±10%
Ohm
4.64
No-load Speed ±10%
rpm
8000
No-load Current ≤125%
mA
120
Speed Constant
rpm/V
167
Torque Constant
mNm/A
56.66
Stall Current
mA
10345
Stall Torque
mNm
586.14
Max. Efficiency
%
80
Inductance mH
mH
0.89
Mechanical Time Constant
ms
8.49
Rotor Inertia
gcm²
59.27
At Max. Output
Current
mA
990
Torque
mNm
56.09
Speed
rmp
7017
Output
W
40

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 235g
● Carbon Brush
● Max. deep of screw installation 4mm

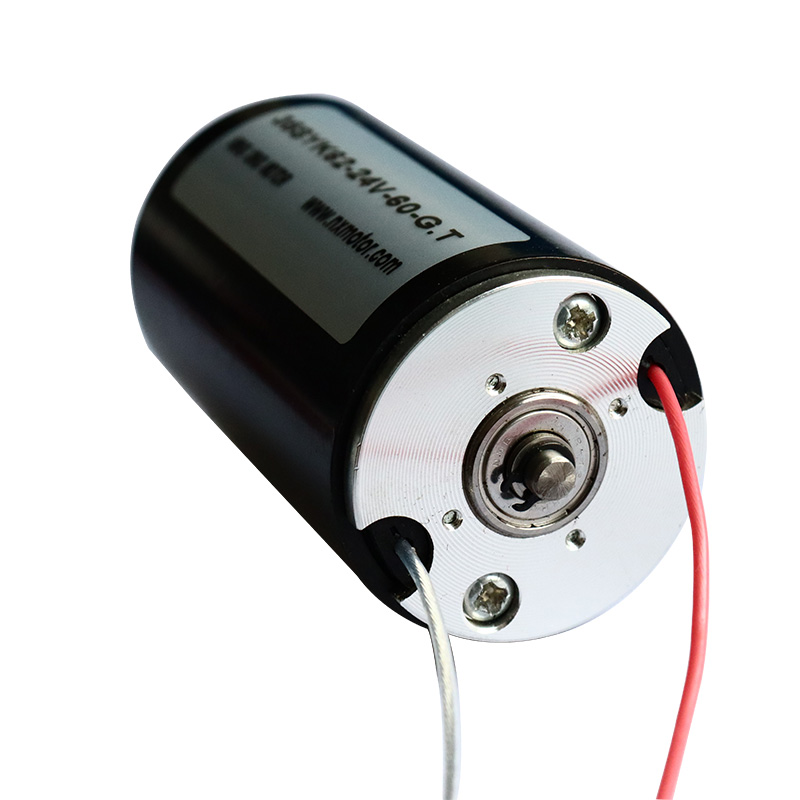

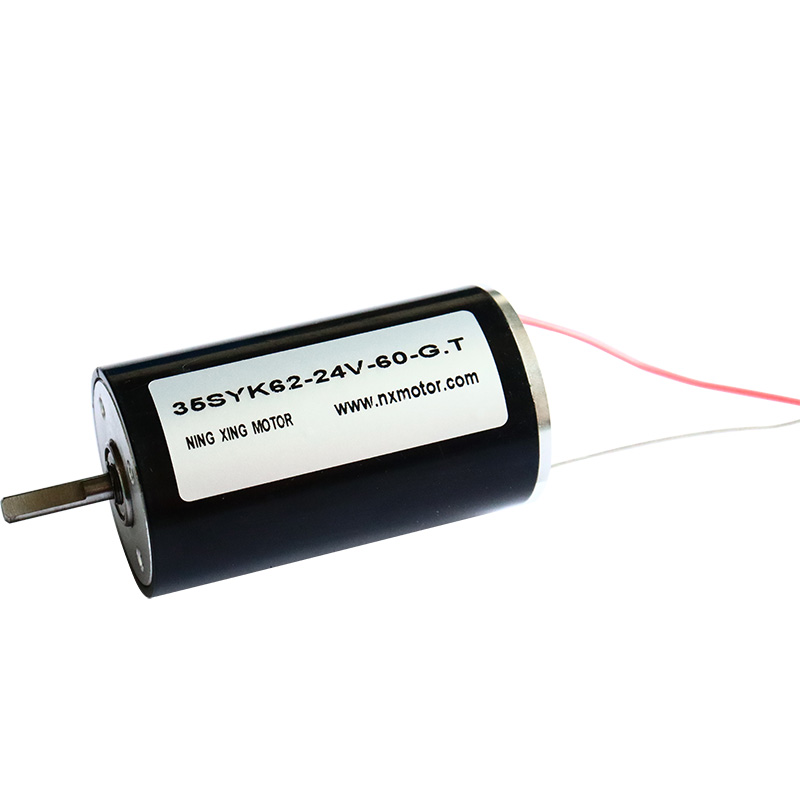

35SYK62.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
50.0
50.0
50.0
60.0
Rated Voltage
Volt
24
24
28
60
Resistance ±10%
Ohm
1.80
1.07
2.07
7.50
No-load Speed ±10%
rpm
4500
6000
5500
6000
No-load Current ≤125%
mA
125
150
130
50
Speed Constant
rpm/V
188
250
196
100
Torque Constant
mNm/A
50.48
37.96
48.17
94.94
Stall Current
mA
13333
22430
13527
8000
Stall Torque
mNm
673.04
851.46
651.60
759.55
Max. Efficiency
%
82
84
81
85
Inductance mH
mH
0.477
0.25
0.45
0.167
Mechanical Time Constant
ms
5.03
4.72
5.96
6.35
Rotor Inertia
gcm²
71.64
63.77
67.26
76.60
At Max. Output
Current
mA
2730
2420
2300
1230
Torque
mNm
137.80
91.87
110.80
116.78
Speed
rmp
3471
5353
4565
4925
Output
W
50
50
50
60

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 275g
● Carbon Brush
● Max. deep of screw installation 4mm

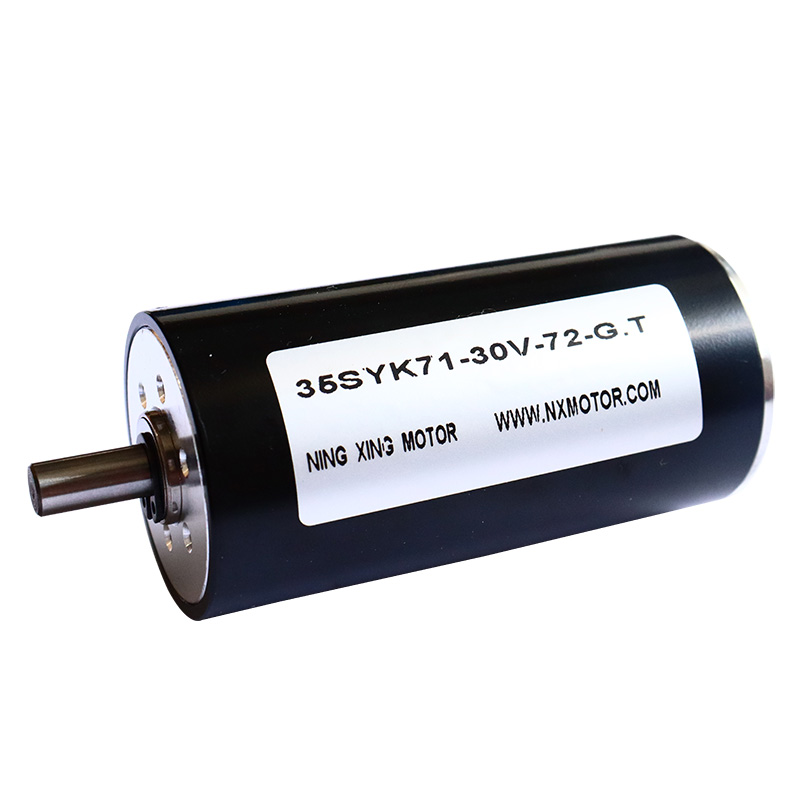

35SYK71.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
90.0
90.0
10.0
40.0
90.0
Rated Voltage
Volt
24
30
48
48
48
Resistance ±10%
Ohm
0.49
1.02
58.00
7.00
2.40
No-load Speed ±10%
rpm
7.500
7.200
1.600
4.400
7.500
No-load Current ≤125%
mA
230
200
16
65
100
Speed Constant
rpm/V
313
240
33
92
156
Torque Constant
mNm/A
30.43
39.54
281.08
103.24
60.84
Stall Current
mA
49980
29412
828
6857
20000
Stall Torque
mNm
1490.43
1162.89
232.62
707.92
1216.82
Max. Efficiency
%
87
84
74
81
86
Inductance mH
mH
0.145
0.24
13
1.9
0.6
Mechanical Time Constant
ms
5.00
5.24
5.87
4.26
5.98
Rotor Inertia
gcm²
94.65
80.59
81.22
65.24
92.39
At Max. Output
Current
mA
4200
3540
390
1020
2180
Torque
mNm
127.80
139.97
109.62
105.30
132.63
Speed
rmp
6857
6143
846
3633
4683
Output
W
90
90
10
40.0
90.0

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 310g
● Carbon Brush
● Max. deep of screw installation 5mm
