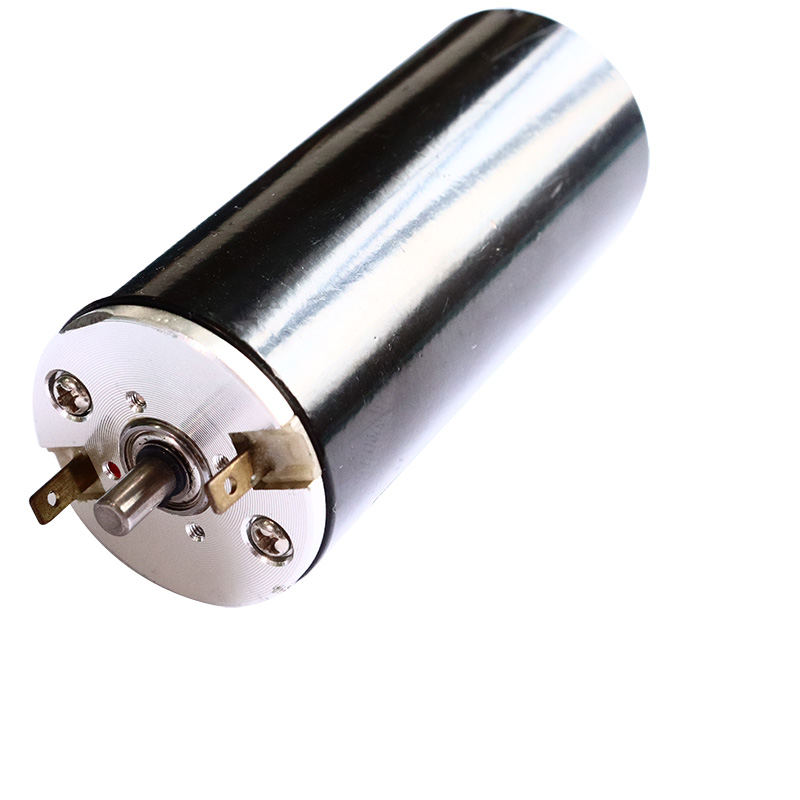

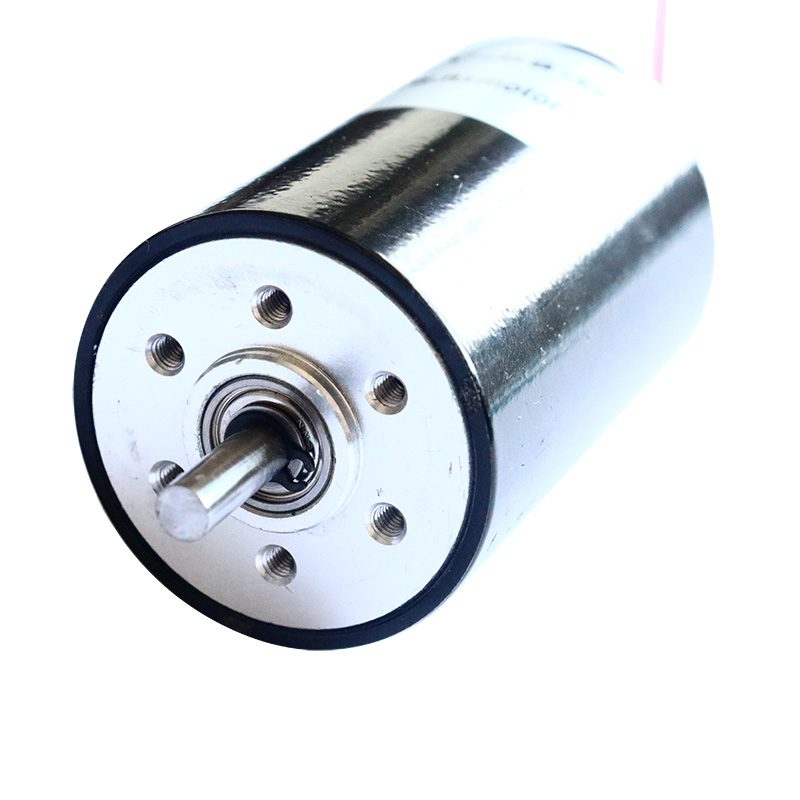

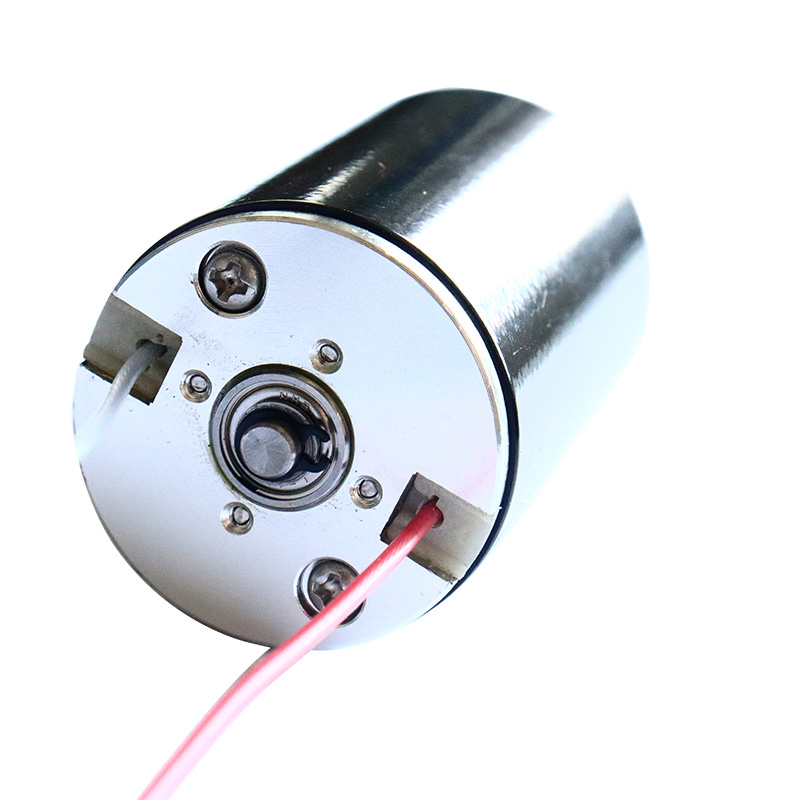

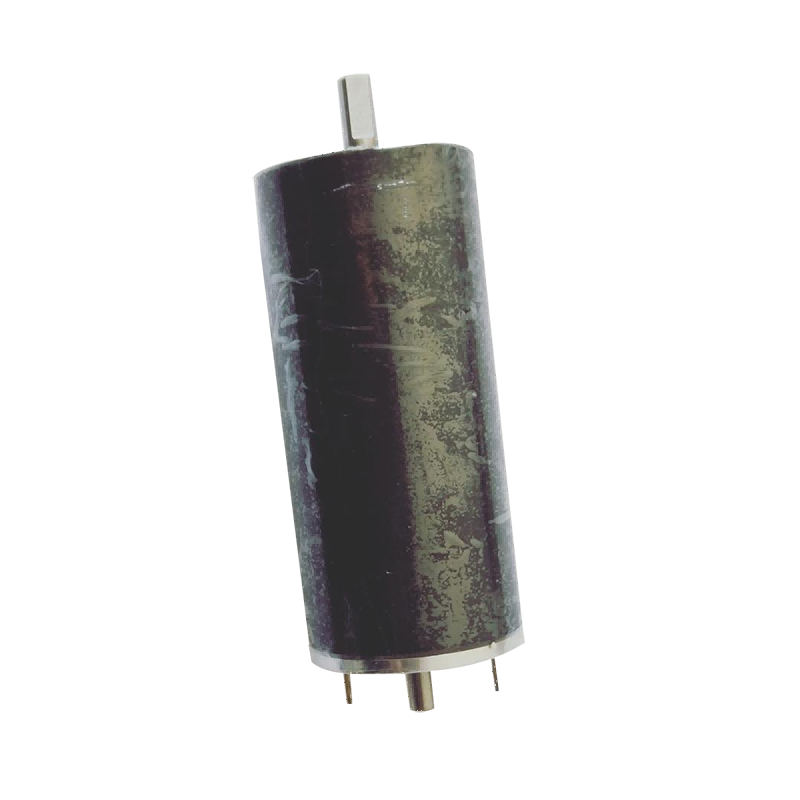

32mm Carbon Brush DC Motor
  • 32mm Carbon Brush DC Motor32mm Carbon Brush DC Motor
  • 32mm Carbon Brush DC Motor32mm Carbon Brush DC Motor
  • 32mm Carbon Brush DC Motor32mm Carbon Brush DC Motor
  • 32mm Carbon Brush DC Motor32mm Carbon Brush DC Motor

32mm Carbon Brush DC Motor

As the professional manufacture, we would like to provide you RuiXing 32mm Carbon Brush DC Motor. The enterprise staff work well, perfect management, choose RuiXing, is your best choice. We always uphold the quality first, Cultivate sales staff familiar with the characteristics of products, enhance the service concept of staff, the company continues to develop and grow, and is willing to work with colleagues from all walks of life hand in hand, seek cooperation and development, continue to provide excellent products and services for new and old customers.

Send Inquiry

Product Description


As the professional manufacture, we would like to provide you RuiXing 32mm Carbon Brush DC Motor. These motors are typically designed to be compact, efficient, and durable. They can provide high torque at low speeds, making them suitable for applications that require precise control, such as robotics and automation. Carbon brush DC motors are also relatively easy to control and can be used in both forward and reverse directions.

32SYK50.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
 W           25.0        60.0
30.0
Rated Voltage
Volt
24  28
36
Resistance ±10%
Ohm
3.6 1.49
5.00
No-load Speed ±10%
rpm
6200 13000
8800
No-load Current ≤125%
mA
110 100
80
Speed Constant
rpm/V
258 464
244
Torque Constant
mNm/A
36.37 20.47
38.65
Stall Current
mA
6667 18792
7.200
Stall Torque
mNm
242.49 384.65
278.29
Max. Efficiency
%
76 86
80
Inductance mH
mH
0.7 0.126
0.412
Mechanical Time Constant
ms
8.99 8.08
8.24
Rotor Inertia
gcm²
33.49 22.76
24.81
At Max. Output

Current
mA
1375 2650
1000
Torque
mNm
50.01 54.24
38.65
Speed
rmp
4774 11167
7350
Output
W
25
60
30

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 185g
● Carbon Brush
● Max. deep of screw installation 4.5mm



32SYK62.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W       60.0    15.0
40.0
Rated Voltage
Volt
24 24
48
Resistance ±10%
Ohm
0.85 5.97
5.88
No-load Speed ±10%
rpm
9000 6000
6500
No-load Current ≤125%
mA
200 50
60
Speed Constant
rpm/V
375 250
135
Torque Constant
mNm/A
25.3 37.74
70.04
Stall Current
mA
28235 4020
8163
Stall Torque
mNm
714.28 151.72
571.71
Max. Efficiency
%
84 79
84
Inductance mH
mH
0.44 0.725
1.115
Mechanical Time Constant
ms
4.84 17.42
4.79
Rotor Tnertia
gcm²
36.59 41.94
40.16
At Max. Output

Current
mA
2900 820
985
Torque
mNm
73.36 30.95
68.98
Speed
rmp
7833 4633
5716
Output
W 60
15
40

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 235g
● Carbon Brush
● Max. deep of screw installation 5mm


32SYK65.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
60.0
60.0
80.0
Rated Voltage
Volt
24
36
36
Resistance ±10%
Ohm
1.60
1.56
1.58
No-load Speed ±10%
rpm
8.500
8.800
10.000
No-load Current ≤125%
mA
110
100
110
Speed Constant
rpm/V
354
244
278
Torque Constant
mNm/A
26.78
38.92
34.23
Stall Current
mA
15000
23077
22785
Stall Torque
mNm
401.68
898.06
779.90
Max. Efficiency
%
84
87
87
Inductance mH
mH
0.15
0.4
0.34
Mechanical Time Constant
ms
10.01
4.89
6.40
Rotor Tnertia
gcm²
42.82
45.06
47.53
At Max. Output
Current
mA
3200
1830
2500
Torque
mNm
85.69
71.22 85.57
Speed
rmp
6687
8102
8903
Output
W
60
60
80

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 260g
● Carbon Brush
● Max. deep of screw installation 4.5mm


32SYK68.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
 W        70.0
85 70.0
80.0
Rated Voltage
Volt
14 18     28
48
Resistance ±10%
Ohm
0.17 0.3 0.69
2.74
No-load Speed ±10%
rpm
8300 8800 8500
8500
No-load Current ≤125%
mA
350 350 200
80
Speed Constant
rpm/V
593 489 304
177
Torque Constant
mNm/A
16.05 19.43 31.32
53.71
Stall Current
mA
82353 60000 40580
17518
Stall Torque
mNm
1321.51 1165.71 1270.85
940.84
Max. Efficiency
%
87 85 86
87
Inductance mH
mH
0.05 0.071 0.189
0.494
Mechanical Time Constant
ms
3.74 4.43 4.10
3.78
Rotor Tnertia
gcm²
56.69 55.84 58.34
39.83
At Max. Output
Current
mA
5700 5530 2800
1940
Torque
mNm
91.47 107.44 87.69
104.19
Speed
rmp
7494 7829 7676
7.559
Output
W
70
85
70
80.0

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 280g
● Carbon Brush
● Max. deep of screw installation  4.5mm


32SYK72.G.T Technique Parameter

MOTOR PARAMETER


Nominal Power
W
20.0
Rated Voltage
Volt
48
Resistance ±10%
Ohm
18.00
No-load Speed ±10%
rpm
2200
No-load Current ≤125%
mA
20
Speed Constant
rpm/V
46
Torque Constant
mNm/A
206.89
Stall Current
mA
2667
Stall Torque
mNm
551.71
Max. Efficiency
%
83
Inductance mH
mH
4.69
Mechanical Time Constant
ms
2.59
Rotor Inertia
gcm²
61.88
At Max. Output
Current
mA
545
Torque
mNm
112.76
Speed
rmp
1698
Output
W
20.0

MEASUREMENT




MOTOR CHARACTERISTIC


● Ambient Temperature Range -40~+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 13
● Weight 310g
● Carbon Brush
● Max. deep of screw installation
