Why is a Hollow Cup DC Brush Motor More Efficient

For over two decades at Ruixing, I’ve been asked countless times what makes our motors stand out. My answer always circles back to core efficiency, specifically when we discuss our specialized Hollow Cup DC Brush Motor. It’s not just another component; it’s a fundamental redesign that tackles the inherent inefficiencies of traditional motors head-on. Customers often come to us with pain points like short battery life, excessive heat generation, and a lack of reliability in their applications. Having spent twenty years in this field, I’ve seen how a Hollow Cup DC Brush Motor directly solves these issues, and today, I want to break down exactly why it is so remarkably efficient.

What is the Core Structural Difference in a Hollow Cup DC Brush Motor

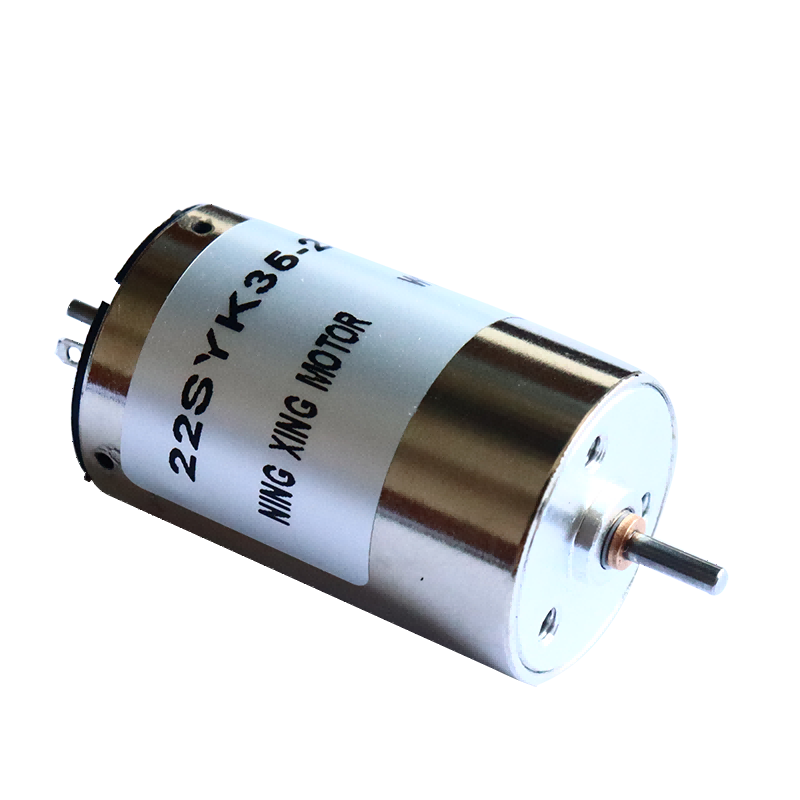

The first thing to understand is the radical departure in its design. A traditional DC motor has a central iron core rotor wrapped in copper windings. This iron core is heavy and contributes to significant energy losses. So, what did we do at Ruixing? We removed it. The rotor in our Hollow Cup DC Brush Motor is a self-supporting, cup-shaped winding without that iron core. This isn't a minor tweak; it's a complete re-imagination. This hollow, lightweight structure is the primary reason for its superior performance. It’s like comparing a solid, heavy flywheel to a lightweight, carbon-fiber one – the latter responds instantly with minimal energy wasted.

How Does the Low Inertia of a Hollow Cup Motor Translate to Real-World Benefits

This leads directly to the most tangible benefit: incredibly low inertia. Without the heavy iron core, the rotor has very little mass to get moving or to stop. Why should you care? Let me list the impacts:

• Rapid Acceleration and Deceleration: The motor can reach its target speed and stop almost instantaneously. This is critical for applications requiring high precision and quick response, such as robotic arms or drone stabilization systems.

• Reduced Energy Consumption: A huge amount of energy in a traditional motor is wasted just to overcome the inertia of its own rotor. Our Hollow Cup DC Brush Motor sidesteps this waste, directing more power to useful work.

• Smoother Operation at Low Speeds: The absence of cogging torque (the magnetic detents you feel when manually spinning a traditional motor) allows for buttery smooth rotation even at very low speeds.

What Key Parameters Should You Look For in a Hollow Cup DC Brush Motor

When evaluating a Hollow Cup DC Brush Motor, technical specifications tell the true story. At Ruixing, we pride ourselves on transparency and performance. Here are the critical parameters for our flagship HCD-42 series, presented to give you a professional benchmark.

Furthermore, here is a list of other advantages that are often specified:

• Low Electrical Time Constant: Typically under 1 ms, enabling ultra-fast current buildup and magnetic field generation.

• Minimal Vibration and Noise: The balanced, coreless design results in exceptionally quiet operation.

• Excellent Heat Dissipation: The hollow structure allows for better air circulation, preventing thermal buildup.

Why is the High Efficiency of a Hollow Cup DC Brush Motor a Game-Changer for Battery Life

This is perhaps the most critical question for our clients. Efficiency isn't just a number on a datasheet; it's the difference between a product that lasts for hours and one that lasts for days. In a traditional motor, a large portion of the battery's energy is lost as heat within the iron core. Our Hollow Cup DC Brush Motor, with its absence of iron losses, converts a much higher percentage of electrical energy directly into mechanical motion. This direct conversion means your battery isn't fighting against its own components. For a portable medical device, a drone, or a high-end cosmetic tool, this efficiency translates directly to longer operational time and enhanced user satisfaction, a principle we’ve built the Ruixing brand upon.

How Can Ruixing's Expertise with Hollow Cup Motor Technology Benefit Your Project

Having pioneered advancements in this technology, we at Ruixing don't just sell a Hollow Cup DC Brush Motor; we provide a solution. We understand that every project has unique demands for torque, size, and control. Our engineering team works directly with clients to tailor these motors, ensuring a perfect fit for your specific application. The reliability and performance we build into every unit are a testament to our two decades of focused innovation.

The evidence is clear: the hollow cup design fundamentally eliminates the major sources of inefficiency found in conventional motors. It offers a compelling combination of speed, responsiveness, and power conservation that is unmatched. If you are designing a next-generation product where performance and battery life are paramount, the question is no longer if you should switch, but when. We invite you to leverage our expertise. Contact us today to discuss how our Hollow Cup DC Brush Motor can revolutionize your application. Our team is ready to provide detailed datasheets and custom support. We look forward to hearing from you and helping bring your most ambitious ideas to life.
